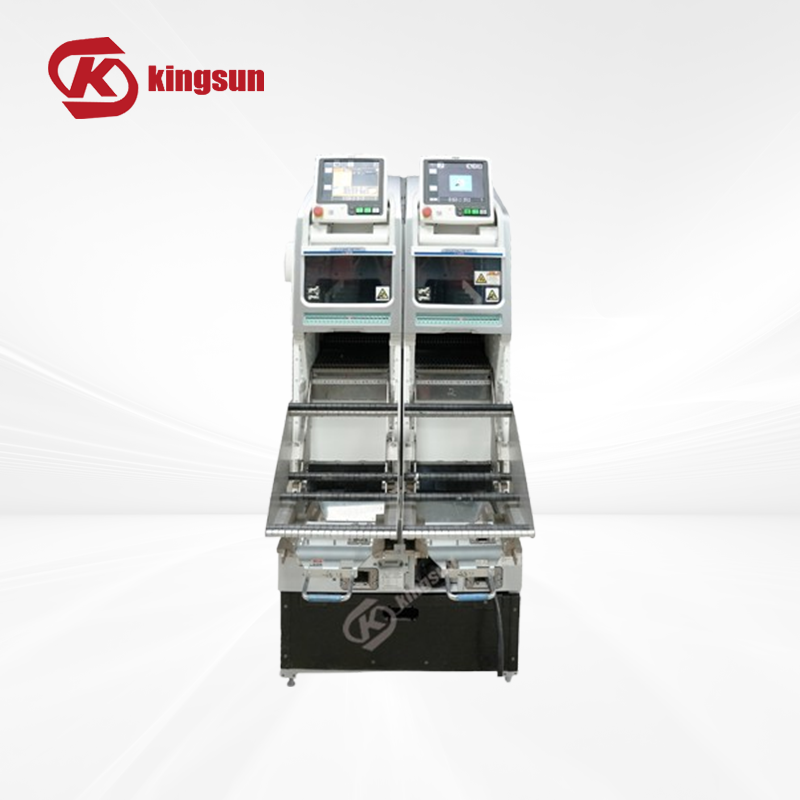

FUJI NXT-M3III Pick And Place Machine

Model FUJI NXT-M3III

Brand FUJI

Consult immediately

Send inquiry

DetailConpanyFAQ

Specification of FUJI AIMEX III SMT SMD Pick and Place Machine

MC Model

M3 III

M6 III

Applicable PCB size (LxW)

48 x 48 mm to 250 x 510 mm (double conveyor)*
48 x 48 mm to 250 x 610 mm (single conveyor)
*Double conveyors can handle PCBs up to 280 (W) mm. PCBs larger than 280 (W) mm must be produced by changing the double conveyor to single lane production mode.

48 x 48 mm to 534 x 510 mm (double conveyor)*
48 x 48 mm to 534 x 610 mm (single conveyor)
*Double conveyors can handle PCBs up to 280 (W) mm. PCBs larger than 280 (W) mm must be produced by changing the double conveyor to single lane production mode.

Part types

Up to 20 types of parts (calculated using 8 mm tape)

Up to 45 types of parts (calculated using 8 mm tape)

PCB loading time

For double conveyor: 0 sec (continuous operation)
For single conveyor: 2.5 sec (transport between M3 III modules), 3.4 sec (transport between M6 III modules)

Placement accuracy
(Fiducial mark standard)
* The placing accuracy is obtained from tests conducted by Fuji.

H24G : +/-0.025 mm (Standard mode) / +/-0.038 mm (Productivity priority mode) (3sigma) cpk≥1.00
V12/H12HS : +/-0.038 (+/-0.050) mm (3sigma) cpk≥1.00
H04S/H04SF : +/-0.040 mm (3sigma) cpk≥1.00
H08/H04 : +/-0.050 mm (3sigma) cpk≥1.00
H02/H01/G04 : +/-0.030 mm (3sigma) cpk≥1.00
H02F/G04F : +/-0.025 mm (3sigma) cpk≥1.00
GL : +/-0.100 mm (3sigma) cpk≥1.00

H24G : +/-0.025 mm (Standard mode) / +/-0.038 mm (Productivity priority mode) (3sigma) cpk≥1.00
V12/H12HS : +/-0.038 (+/-0.050) mm (3sigma) cpk≥1.00
H08M/H04S/H04SF : +/-0.040 mm (3sigma) cpk≥1.00
H08/H04/OF : +/-0.050 mm (3sigma) cpk≥1.00
H02/H01/G04 : +/-0.030 mm (3sigma) cpk≥1.00
H02F/G04F : +/-0.025 mm (3sigma) cpk≥1.00
GL : +/-0.100 mm (3sigma) cpk≥1.00

Productivity
* The throughput above is based on tests conducted at Fuji.

H24G : 37,500 cph (Productivity priority mode) / 35,000 cph (Standard mode)
V12 : 26,000 cph
H12HS : 24,500 cph
H08 : 11,500 cph
H04 : 6,500 cph
H04S : 9,500 cph
H04SF : 10,500 cph
H02 : 5,500 cph
H02F : 6,700 cph
H01 : 4,200 cph
G04 : 7,500 cph
G04F : 7,500 cph
GL : 16,363 dph (0.22 sec/dot)

H24G : 37,500 cph (Productivity priority mode) / 35,000 cph (Standard mode)
V12 : 26,000 cph
H12HS : 24,500 cph
H08M : 13,000 cph
H08 : 11,500 cph
H04 : 6,500 cph
H04S : 9,500 cph
H04SF : 10,500 cph
H02 : 5,500 cph
H02F : 6,700 cph
H01 : 4,200 cph
G04 : 7,500 cph
G04F : 7,500 cph
0F : 3,000 cph
GL : 16,363 dph (0.22 sec/dot)

Supported parts

H24G	: 0201 to 5 x 5 mm	Height	: up to 2.0 mm
V12/H12HS	: 0402 to 7.5 x 7.5 mm	Height	: up to 3.0 mm
H08M	: 0603 to 45 x 45 mm	Height	: up to 13.0 mm
H08	: 0402 to 12 x 12 mm	Height	: up to 6.5 mm
H04	: 1608 to 38 x 38 mm	Height	: up to 9.5 mm
H04S/H04SF	: 1608 to 38 x 38 mm	Height	: up to 6.5 mm
H02/H02F/H01/0F	: 1608 to 74 x 74 mm (32 x 180 mm)	Height	: up to 25.4 mm
G04/G04F	:0402 to 15 x 15 mm	Height	: up to 6.5 mm

Module width

320 mm

645 mm

Machine dimensions

L: 1295 mm (M3 III x 4, M6 III x 2) / 645 mm (M3 III x 2, M6 III)
W: 1900.2 mm, H: 1476 mm
