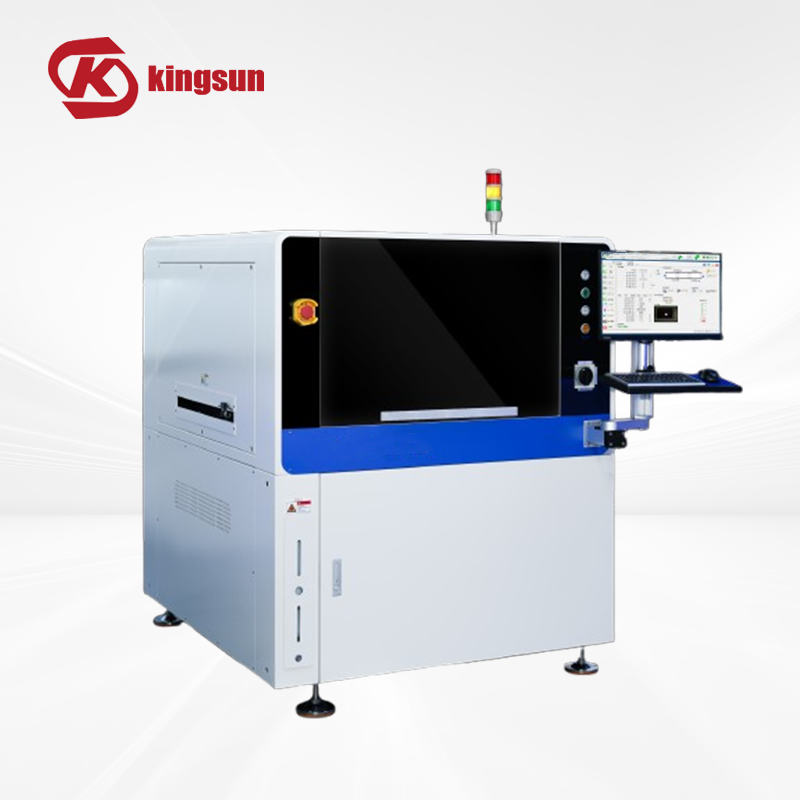

KS-GLS
TECHNICAL PARAMETER
Repeat Position Accuracy | ±12.5um@6σ,CPK≥2.0 |
Print Accuracy | ±22um@6σ,CPK≥2.0 |
NCP-CT（No cleaning or printing included） | <7.5s |
Process CT | 5min |
Transfer line CT | 3min |
Maximum Board Size | 510*510mm |
Minimum Board Size | 50*50mm |
Board Thickness | 0.4~6mm |
Camera Mechanical Range | 510*510mm |
Maximum Board Weight | 5kg |
Board Edge Clearance | 2.5mm |
Board Height | 23mm |
Transport Speed | 900 ± 40mm |
(Max) Transport Speed | 1500mm/s (Max) |
Transport Direction | One stage |
Transmission Direction | Left to right |
Right to Left | |
In and out the same | |
Support System | (65mm） Magnetic Pin |
（65mm） Support Block | |
Manual Up-down table |
Board clamp | Manual the top clamping |
Side clamping | |
Adsorption function | |
Print Speed | 10~200mm/sec |
Print Pressure | 0.5~20Kg |
Print Mode | One/Twice |
Queegee Type |
Rubber/Squeegee Blade (angle 45°/55°/60°) |
Snap-off | 0~20mm |
Snap-Speed | 0~20mm/sec |
The template frame size | 470*370mm~737*737mm(thickness：20-40mm) |
Stencil positioning method |
Automatic Y-direction positioning |
Cleaning System |
Dry, Wet Vacuum three modes |
High speed cleaning |
Integrated & weave cleaning |
Cleaning system |
Side spray type |
Cleaning stroke | Automatic generation |
Cleaning position |
Post cleaning |
Cleaning Speed | 10-200mm/sec |
Cleaning fluid consumption |
Auto & Manually adjustable |
Cleaning paper consumption |
Auto & Manually adjustable |
CCD FOV | 10*8mm |
Camera Type |
130 Thousand CCD Digital camera |
Camera System |
Lock up/down optics structure |
Maging CT | 300ms |
Fiducial Mark Types | Standard Fiducial Mark Shape |
round、square、diamond、cross | |
Pad and profile | |
Mark Size | 0.15-5mm |
Mark Number | Max：4pcs |
Stay Away Number | Max：1pcs |
Power Source | AC:220 ±10%, 50/60Hz 2.2KW |
Air Pressure | 4~6Kgf/cm2 |
Air Consumption | Approx: 5L/min |
Operating Temperature | -20℃~+45℃ |
Working Environment Humidity | 30%~60% |
Machine Dimension(without Tower light) | 1500(H) mm |
Machine Length | 1250(L) mm |
Machine Width | 1425(W) mm |
Machine Weight Approx | Approx: 1100Kg |
