The Sweet Spot: Engineering Your Optimal Medium Volume SMT Printing Solution

For manufacturers producing batches between 1,000 and 50,000 units, a one-size-fits-all approach to equipment fails. You need a medium volume SMT printing solution engineered for this specific niche: robust enough for sustained daily runs, flexible enough for product changeovers, and efficient enough to deliver a superior cost-per-board without the overhead of a high-speed mega-line.

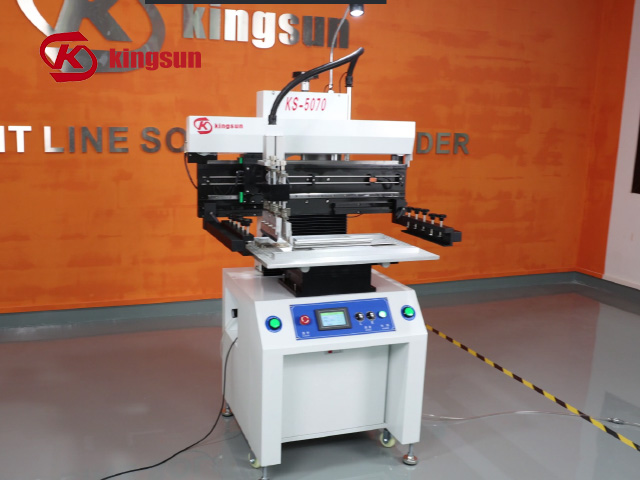

Characteristics of a Purpose-Built Medium-Volume Printer

This class of printer, often an enhanced semi-automatic or an entry-level full-auto model, is defined by specific upgrades over basic benchtop units:

• Enhanced Durability & Uptime: Components such as squeegee blades, motors, and guides are industrial-grade, designed for thousands of cycles with minimal wear.

• Advanced Process Controls: Features like real-time squeegee pressure monitoring, automatic stencil underwipe systems (after X number of cycles), and two-dimensional post-print inspection (2D SPI) options ensure process stability over long batches.

• Increased Throughput Mechanics: May include a pneumatic or electric shuttle table that allows an operator to load one board while the machine prints another, effectively doubling output.

• Basic Data Integration: Capability to output job count, error codes, or cycle time data for tracking Overall Equipment Effectiveness (OEE).

Building a Cohesive Production Cell

The printer is the heart of the cell, but its efficiency is multiplied by synergistic peripherals:

• A Dedicated Solder Paste Cooler/Agitator: Maintains paste viscosity and homogeneity throughout an 8-hour shift, eliminating print quality drift.

• Semi-Automatic Stencil Cleaner: Allows for quick, effective stencil cleaning between batches or during pauses, maintaining aperture integrity.

• Organized Feeder Carts & Setup Stations: Reduces non-productive time spent searching for tools, stencils, or paste.

Designing this integrated cell is where a Full SMT line solution provider adds immense value. We analyze your product mix, batch size, and goals to recommend the optimal printer model and complementary workflow, ensuring your investment drives maximum productivity.

Is your batch production as efficient and profitable as it could be?
Contact SMTFullLine.com for a complimentary production audit and a proposal for a tailored medium volume SMT printing solution that grows with your business.
