The Benchmark for Desktop Precision: What Defines a True High-Accuracy Benchtop Solder Printer
The term “benchtop solder printer” encompasses a wide range of equipment, from simple manual units to sophisticated systems. For engineers and small-batch manufacturers, the defining requirement is often high-accuracy. But what does this truly mean in practice? A genuine high-accuracy benchtop solder printer is characterized not by a single feature, but by a synergistic design where mechanical stability, precise control, and repeatable processes converge to deliver consistent, micron-level performance day after day.
The Pillars of Benchtop Precision

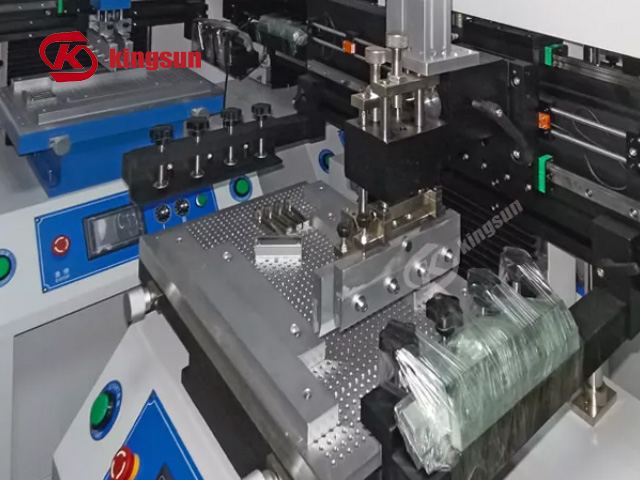

Foundational Rigidity: Accuracy is impossible on a shaky foundation. A high-accuracy printer is built on a massive, stress-relieved aluminum or steel base with a reinforced gantry. This design dampens vibrations from the print stroke and environmental sources, ensuring that the critical relationship between the stencil and PCB does not shift during operation.
Precision Motion Control: The print head must travel a perfectly straight and consistent path. This is achieved through high-grade linear guides and ball screws, coupled with precision servo or stepper motors. This ensures the squeegee applies uniform pressure across the entire stencil length, which is essential for achieving an even paste roll and complete aperture fill.
Micrometer-Grade Adjustment: Coarse adjustments are insufficient. The machine must offer fine-pitch adjustment knobs or digital controls for stencil alignment in all axes (X, Y, Z, θ) with resolution down to 0.01mm or better. This level of control is what allows operators to dial in perfect registration for challenging layouts.
Controlled Process Parameters: Beyond alignment, accuracy extends to the printing process itself. The ability to precisely set and maintain squeegee pressure, speed, and separation distance is non-negotiable for adapting to different solder paste types and stencil designs while maintaining optimal paste release.
The Ideal Tool for Demanding, Space-Constrained Applications
This class of printer is the workhorse for environments where space is limited but standards are high:
Advanced R&D and Prototyping: Allows engineers to produce build-like-production prototypes, enabling valid functional and reliability testing.
Low-Volume, High-Reliability Production: Ideal for manufacturing specialized medical devices, aerospace sub-assemblies, or high-end instrumentation where volumes are modest but quality tolerances are extreme.
University and Technical Training Labs: Provides students with hands-on experience using equipment that reflects real-world industrial standards and processes.
Support for Legacy Products: Enables the continued high-quality manufacture of products with long lifecycles without dedicating a factory floor line.
Invest in a foundation of precision.
Visit SMTFullLine.com to view our engineered high-accuracy benchtop solder printers and download detailed technical specifications to inform your decision.
