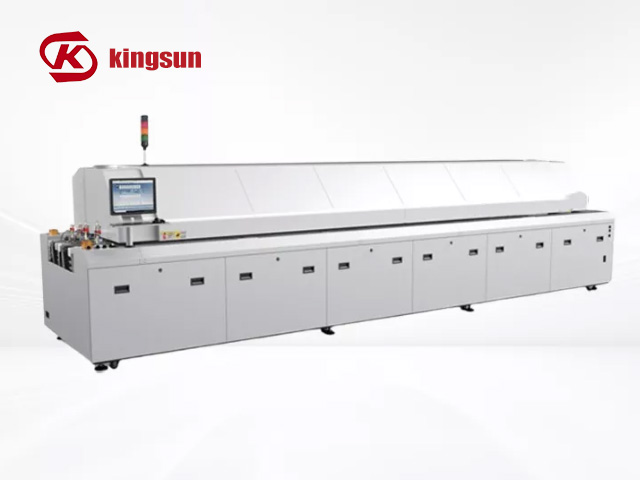

The Heart of the SMT Line: Choosing the Right Reflow Oven for PCB Assembly

A reflow oven for PCB assembly line is far more than just a heating chamber; it is the critical process stage where components become permanently bonded to the board. Its performance directly dictates the mechanical strength, electrical reliability, and long-term durability of every product you ship. Selecting the correct oven is not just about heating profiles—it's about ensuring process stability, maximizing throughput, and achieving consistent quality in a continuous production environment.

Core Requirements for In-Line Reflow Solutions

When integrated into a flowing SMT line, the reflow oven must meet specific demands that bench-top models do not address:

• Synchronized Throughput: The oven's conveyor speed must seamlessly match the cycle time of your placement machines to prevent bottlenecks or starved production flow. A variable speed drive and a stable thermal recovery rate are essential for maintaining pace.

• Robust Construction for 24/7 Operation: Industrial-grade heating elements, insulated cabinets, and heavy-duty conveyor systems are mandatory to withstand continuous multi-shift operation without performance degradation.

• Precise, Repeatable Thermal Profiling: Multiple independently controlled heating zones (typically 8-12) allow for the creation and precise maintenance of the critical temperature curve (ramp, soak, reflow, cooling) required for your specific solder paste and components.

• Advanced Process Control & Data Logging: Integration-ready ovens offer real-time monitoring, closed-loop control, and comprehensive data output for traceability—a key requirement for modern quality management systems and Industry 4.0 initiatives.

Integration and Optimization with Your Full SMT Line

The value of a reflow oven is maximized when it works in harmony with the rest of your line. Key integration points include:

• Physical Line Compatibility: Matching conveyor edge rail width and height to your printer and placement equipment for smooth, hands-off board transfer.

• Software Connectivity: Capability to link with your MES (Manufacturing Execution System) to receive job recipes and report process data like peak temperatures and conveyor speed for each board.

• Support for Advanced Processes: Features like nitrogen (N2) inert atmosphere capabilities become crucial for soldering advanced packages (e.g., BGA, QFN) with minimal oxidation, reducing defects and improving joint strength.

As your trusted full SMT line solution provider, SMTFullLine specializes in recommending and integrating the optimal reflow technology—whether convection, vapor phase, or condensing—into your new or existing PCB assembly line.

Ready to solidify the final, most critical step in your assembly process?
Contact SMTFullLine.com for expert guidance on selecting and integrating the perfect reflow oven for your PCB assembly line's throughput and quality goals.
