Illuminating Efficiency: Optimizing Production with a Reflow Oven for LED Strip Manufacturing
LED strip lighting manufacturing presents unique challenges: processing long, continuous, and often flexible PCB reels. A standard oven designed for small, rigid boards is ill-suited for this task. A specialized reflow oven for LED strip manufacturing is engineered for efficient, high-volume, and consistent soldering of these unique substrates, directly impacting output, quality, and profitability.
Engineered for the Unique Demands of LED Strips

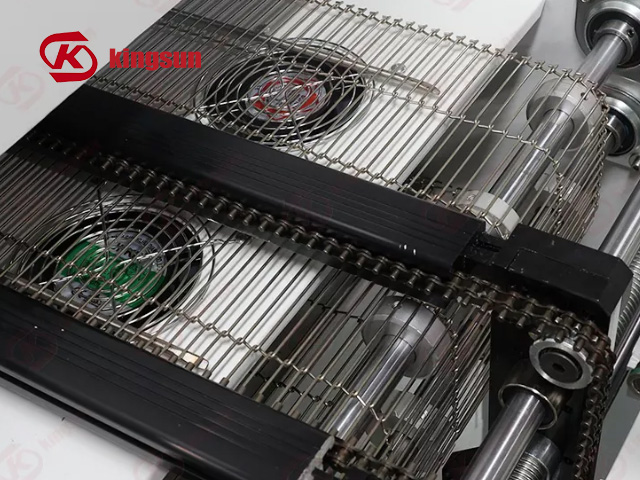

Continuous or Extended-Length Processing: These ovens feature long heating tunnels and stable conveyor systems capable of processing reels of LED strips in a continuous flow or very long rigid strips without splicing, maximizing production efficiency.
Precise Thermal Management for Flexible Boards: Flexible PCBs (FPC) used in strips have different thermal mass and behavior than rigid boards. The oven must provide a highly controllable and gentle profile to prevent warping, delamination, or damage to the flexible base material while ensuring perfect reflow of the SMD LEDs and resistors.
High Throughput with Consistent Quality: Speed is key in high-volume consumer lighting. The oven must offer rapid thermal recovery and stable zone temperatures to maintain a consistent profile at high conveyor speeds, ensuring every segment of the strip is identically soldered.
Durability for 24/7 Operation: LED strip production often runs continuously to meet demand. Industrial-grade construction, easy-clean interiors (to manage flux residue), and minimal maintenance requirements are crucial for minimizing downtime.
The Impact on Product Quality and Performance
A properly reflowed LED strip ensures:
Uniform Brightness and Color: Consistent solder joints prevent variations in electrical connection that can cause dimming or color shifts between LEDs.
Long-Term Reliability and Weather Resistance: For outdoor or architectural strips, complete solder joint formation is critical to withstand thermal cycling and moisture ingress over years of operation.
Reduced Waste and Rework: A stable process minimizes defects like cold solder joints or tombstoning, which are difficult and costly to repair on long, assembled strips.
Streamline your lighting production from reel to reel.
Discover reflow oven solutions specifically configured for LED strip manufacturing at SMTFullLine.com. Contact us to discuss your throughput needs and board specifications.
