What is SMT Pick and Place? The Heart of Modern Electronics Manufacturing

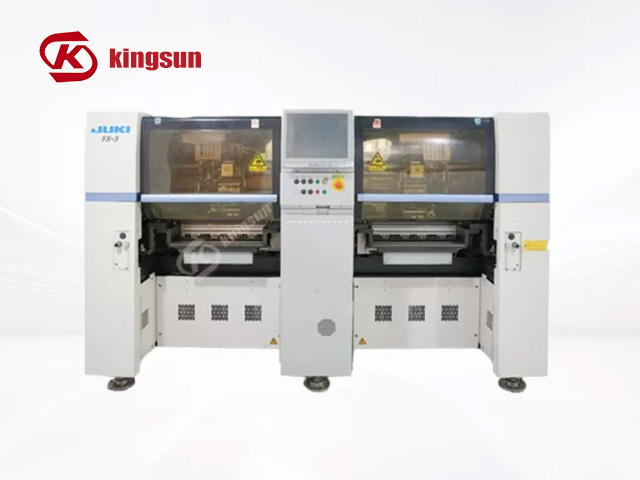

SMT Pick and Place refers to the automated process and the core machinery used in Surface Mount Technology (SMT) to accurately place electronic components onto a Printed Circuit Board (PCB). It is the pivotal step that replaced slow, error-prone manual assembly, enabling the mass production of everything from smartphones to medical devices with speed and precision.
How Does a Pick and Place Machine Work?
The process is a marvel of mechatronics:
Feeding: Components are supplied in reels, trays, or sticks via feeders attached to the machine.
Picking: A robotic placement head uses a vacuum nozzle to pick up a component.
Vision Inspection: Cameras check the component's orientation, size, and leads, correcting any misalignment.
Placing: The head moves to the programmed XY coordinate on the PCB and places the component onto pre-applied solder paste.
Repetition: This cycle repeats thousands of times per hour with micron-level accuracy.
Key Components of a Pick and Place System
Placement Head & Nozzles: The "hand" that picks and places components.
Vision System: The "eyes" that ensure accuracy.
Feeder System: The "supply chain" that presents components.
Motion Control System: The high-speed, precise positioning mechanics.
Controller & Software: The "brain" that orchestrates the entire operation.
