SMT Assembly Process Guide: From Bare Board to Finished PCB

The SMT Assembly Process is a highly automated, sequential workflow that transforms a bare PCB into a populated, functional board. Here’s a step-by-step breakdown.

Step 1: Solder Paste Printing

Solder paste (a mix of tiny solder balls and flux) is precisely deposited onto the PCB's solder pads through a laser-cut stencil. This is done by an SMT Stencil Printer.

Step 2: Solder Paste Inspection (SPI)

A 3D SPI Machine scans the board to measure the paste deposit's volume, height, and alignment. Catching defects here prevents costly rework later.

Step 3: Component Placement

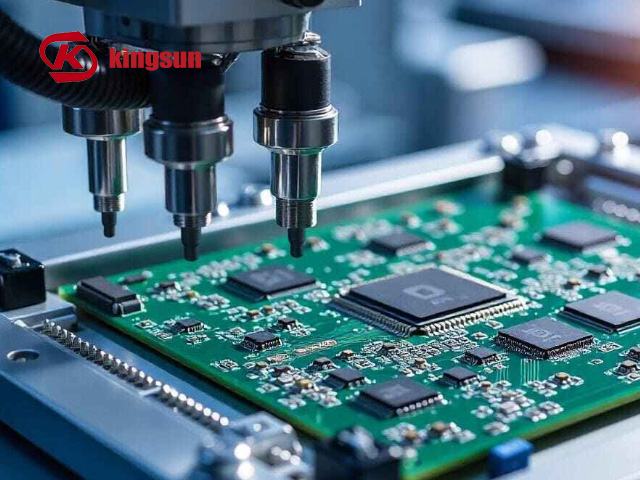

The SMT Pick and Place Machine picks components from feeders and places them onto the solder paste pads with high speed and accuracy.

Step 4: Reflow Soldering

The assembled board travels through a Reflow Oven. A carefully controlled thermal profile melts the solder paste, creating permanent electrical and mechanical connections.

Step 5: Automated Optical Inspection (AOI)

An AOI Machine uses cameras to check for post-soldering defects like missing components, misalignment, or soldering bridges.

Step 6: Conformal Coating, Testing, & Final Assembly

Optional protective coating may be applied. Boards then undergo electrical testing before being integrated into the final product.
