SMT Machine Troubleshooting: Common Problems and Practical Solutions

Even the best SMT machines encounter issues. Fast troubleshooting minimizes downtime. Here are common problems across printers, placers, and feeders.

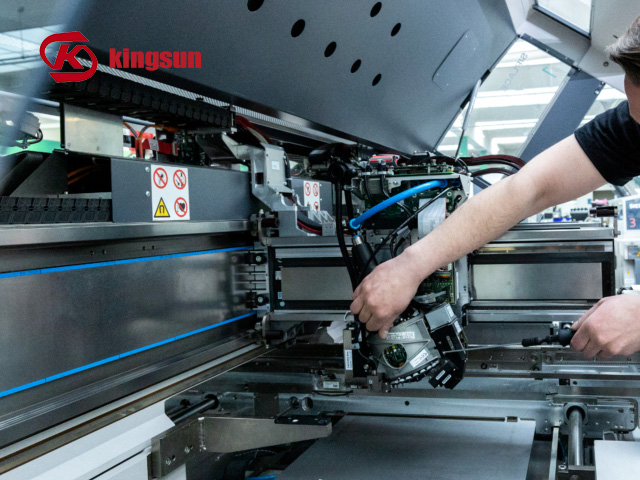

Pick and Place Machine Issues

• Problem: Component Pickup Errors.

  • Causes: Wrong/nozzle size, clogged vacuum, incorrect feeder position, low component grip force.

  • Fix: Check nozzle for wear/blockage. Verify vacuum pressure. Re-teach feeder pickup position.

• Problem: Vision Recognition Failures.

  • Causes: Dirty camera lens, incorrect lighting, wrong component library data.

  • Fix: Clean lens. Adjust lighting intensity/angle. Verify part dimensions in the library.

SMT Printer Issues

• Problem: Solder Paste Bridging.

  • Causes: Stencil misalignment, excessive paste volume, worn squeegee.

  • Fix: Re-calibrate stencil alignment. Reduce print pressure/speed. Replace squeegee.

• Problem: Insufficient Solder Paste.

  • Causes: Clogged stencil apertures, low print pressure, dried paste.

  • Fix: Clean stencil thoroughly. Increase pressure slightly. Use fresh solder paste.

Feeder Issues

• Problem: Component Feeding/Misfeeds.

  • Causes: Damaged tape sprocket holes, incorrect feeder pitch setting, worn feeder clutch.

  • Fix: Inspect tape reel. Verify and adjust pitch setting. Service or replace the feeder.

Persistent problems need expert diagnosis. Contact the technical support team at SMTFullLine.com for advanced troubleshooting and genuine spare parts.
