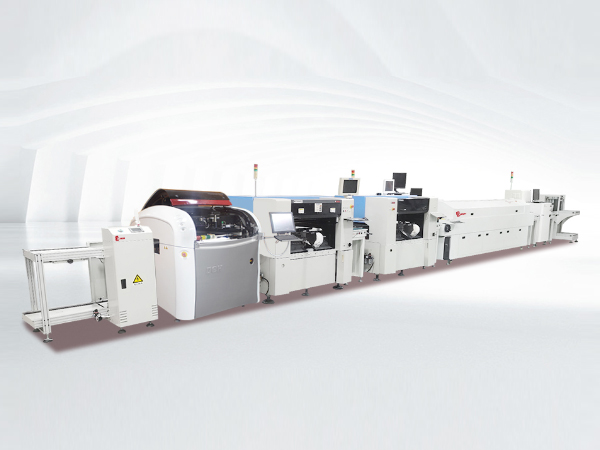

SMT Line: Designing a Complete & Optimized Surface Mount Technology Assembly Line

In the world of electronics manufacturing, the efficiency and quality of your SMT line are the defining factors of your success. A well-designed Surface Mount Technology assembly line is a harmonized system where each piece of equipment works in concert to transform raw PCBs into populated, sophisticated boards with maximum yield, speed, and reliability. Whether you are establishing a new facility or upgrading existing capacity, optimizing your SMT production line is the most impactful investment you can make.

The Core Components of a Modern SMT Assembly Line

A fully optimized SMT line integrates several critical machines into a seamless workflow. Each component plays a vital role in ensuring a flawless manufacturing process:

1. Solder Paste Printing: The process starts with a precise solder paste printer (fully automatic or semi-automatic), which deposits solder paste onto the PCB pads. This step is critical, as the majority of defects originate here.

2. Solder Paste Inspection (SPI): An inline 3D SPI machine scans the board immediately after printing. It measures the volume, height, and alignment of the paste deposits, catching defects before components are placed—dramatically improving yield.

3. Component Placement: The heart of the line. High-speed and ultra-precision pick and place machines accurately position hundreds of thousands of components per hour onto the paste-deposited PCB.

4. Reflow Soldering: The assembled PCB travels through a reflow oven, where a carefully controlled thermal profile melts the solder paste, creating permanent electrical and mechanical connections without damaging components.

5. Automated Optical Inspection (AOI): After soldering, an AOI system uses high-resolution cameras to verify the quality of the assembly, checking for missing components, misalignment, bridging, and other soldering defects.

Key Benefits of an Integrated SMT Production Line

Investing in a cohesive SMT assembly line from a single provider like SMTFullLine offers unparalleled advantages:

• Maximized Throughput & Uptime: Perfectly matched equipment ensures smooth material flow with no bottlenecks, maximizing overall equipment effectiveness (OEE).

• Superior Quality Control: Inline inspection (SPI & AOI) at critical stages creates a closed-loop process that identifies and often auto-corrects issues in real-time, ensuring a high first-pass yield.

• Reduced Operational Costs: Automation minimizes manual labor, reduces human error, and decreases scrap and rework, significantly lowering your cost per board.

• Scalability & Flexibility: A well-planned line can be configured to handle everything from high-volume, single-board production to high-mix, low-volume prototyping with quick changeovers.

Planning Your SMT Line: Critical Considerations

Designing an efficient SMT production line requires careful analysis of your specific needs:

• Production Volume & Mix: Are you producing millions of one board or hundreds of different ones? This dictates the level of automation and flexibility required.

• Board & Component Complexity: Handling ultra-fine-pitch (0201, 01005) or BGAs requires high-precision placers and advanced inspection.

• Floor Space & Layout: Optimizing the footprint and flow of the line is essential for efficiency and future expansion.

• Budget & ROI: We provide solutions that balance advanced capabilities with a compelling return on investment.

Partner with SMTFullLine for Your End-to-End SMT Solution

Why juggle multiple vendors when you can have a single, reliable partner? SMTFullLine provides everything you need for a world-class SMT assembly line, from individual machines to complete turnkey solutions with installation, training, and global support.

Visit SMTFullLine.com to explore our full range of SMT equipment. Contact our engineering experts today for a free consultation and a customized line configuration tailored to your production goals.
