SMT Production Line: Your Blueprint for High-Efficiency Electronics Manufacturing

An optimized SMT production line is the engine of modern electronics manufacturing, where precision, speed, and reliability converge to transform raw components into functional printed circuit boards. More than just a series of machines, a well-designed SMT assembly line represents a harmonized ecosystem engineered to maximize yield, minimize cost per board, and ensure consistent quality in high-volume production environments.

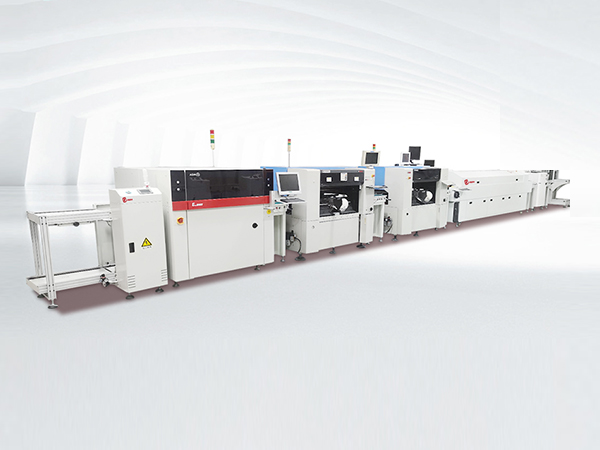

The Architecture of a Modern SMT Production Line

Today's advanced SMT production line integrates sophisticated technologies into a seamless workflow where each station performs a critical function:

Core Process Stations:

1. Solder Paste Application: The process initiates with a high-precision stencil printing system that deposits solder paste onto PCB pads with micron-level accuracy

2. Precision Inspection: Immediately following printing, a 3D solder paste inspection (SPI) system validates paste volume, alignment, and height, preventing defects before component placement

3. Component Placement: High-speed chip mounters equipped with advanced vision systems place components at rates exceeding 50,000 CPH while maintaining placement accuracy up to 25µm

4. Reflow Soldering: The assembled boards undergo controlled thermal processing in a multi-zone reflow oven where precise temperature profiles create permanent solder joints

5. Automated Quality Control: Post-reflow automated optical inspection (AOI) systems perform comprehensive checks for assembly defects, ensuring only quality boards advance

Strategic Advantages of an Integrated SMT Assembly Line

Implementing a fully optimized SMT production line delivers transformative benefits:

• Maximized Operational Efficiency: Synchronized equipment reduces handling time and eliminates bottlenecks, achieving overall equipment effectiveness (OEE) above 85%

• Superior Quality Assurance: In-process inspection stations create closed-loop feedback systems that continuously monitor and maintain process capability indexes (CpK) above 1.67

• Reduced Manufacturing Costs: Automated material handling and minimized manual intervention lower labor requirements while decreasing scrap rates to under 0.5%

• Enhanced Scalability: Modular design principles allow capacity expansion and technology upgrades without complete line reconfiguration

Critical Design Considerations for Production Line Optimization

When planning your SMT production line infrastructure, several factors demand careful analysis:

1. Production Volume Requirements: Determine whether your operation requires dedicated high-speed lines (>1 million placements/hour) or flexible cells for medium-volume production

2. Technology Mix Requirements: Assess needs for handling advanced packages including 01005 components, μBGAs, QFNs, and heterogeneous integration

3. Floor Space Optimization: Implement efficient line layouts (U-shaped, linear, or parallel configurations) that minimize footprint while maintaining accessibility

4. Future-Proofing Strategy: Select equipment with capabilities to accommodate anticipated technology developments and product evolution

Partner for Production Line Excellence

Designing and implementing an optimal SMT production line requires more than equipment—it demands expertise in process integration, facility planning, and operational optimization.

Explore our comprehensive SMT production line solutions at SMTFullLine.com. Our engineering team provides customized line layouts, equipment recommendations, and transition planning to ensure your manufacturing success. Request a professional consultation today.
