SMT Insert Machine: Precision Through-Hole Component Insertion for Hybrid PCB Assembly

In modern electronics manufacturing, many products require a combination of surface mount technology (SMT) and through-hole technology (THT) components to meet specific mechanical and electrical requirements. An SMT insert machine bridges this critical manufacturing gap, providing automated, high-precision insertion of through-hole components into PCBs after SMT processes. This hybrid approach ensures robust mechanical connections while maintaining production efficiency in complex assembly applications.

The Vital Role of Insert Machines in Modern PCB Assembly

While SMT dominates modern electronics manufacturing, through-hole components remain essential for:

• High-Reliability Applications: Connectors, transformers, and large capacitors requiring superior mechanical strength

• High-Voltage/High-Current Circuits: Components needing enhanced thermal and electrical connectivity

• Mechanical Stress Points: Connectors and interface components subjected to frequent physical interaction

• Specialized Applications: Aerospace, automotive, and industrial controls demanding proven reliability

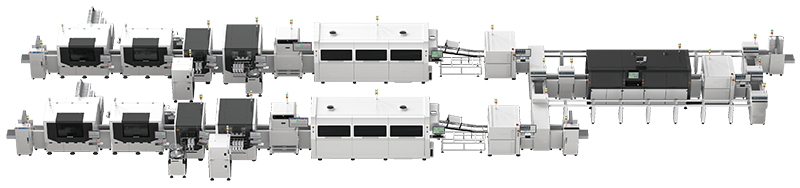

The SMT insert machine seamlessly integrates into existing production lines, enabling manufacturers to combine the benefits of both assembly technologies without compromising efficiency.

Key Advantages of Automated Component Insertion

Implementing an SMT insert machine delivers significant operational benefits:

• Superior Insertion Accuracy: Precision robotics ensure perfect component alignment and insertion depth, eliminating bent leads or damaged PCBs

• Enhanced Production Speed: Automated systems achieve insertion rates 3-5 times faster than manual operations, significantly reducing cycle times

• Consistent Quality Assurance: Automated processes eliminate human variability, ensuring every component meets exact specifications

• Reduced Labor Costs: Minimize manual labor requirements while increasing throughput capacity

• Comprehensive Process Documentation: Automated data collection provides complete traceability for quality control and compliance requirements

Technical Specifications and Capabilities

Modern SMT insert machines offer sophisticated features for diverse manufacturing needs:

• Component Range Compatibility: Handles various through-hole components from standard resistors and capacitors to complex connectors and sockets

• Flexible Feeding Systems: Compatible with tape, tray, and stick feeding mechanisms for uninterrupted production

• Vision-Assisted Alignment: High-resolution cameras ensure precise component orientation and insertion accuracy

• Quick Changeover Capability: Rapid programming adjustments minimize downtime between production batches

• Integration Flexibility: Designed to interface seamlessly with existing SMT production lines and workflow systems

Industry Applications and Implementation Scenarios

SMT insert machines serve critical roles across multiple sectors:

• Automotive Electronics: Control units, sensor modules, and power management systems

• Industrial Automation: PLCs, motor controllers, and power supply units

• Telecommunications Infrastructure: Network equipment, base stations, and routing systems

• Consumer Appliances: High-end audio/video equipment and smart home devices

• Medical Electronics: Diagnostic equipment and patient monitoring systems

Optimize Your Hybrid Manufacturing Process Today

Integrating an SMT insert machine into your production line represents a strategic investment in manufacturing versatility and product reliability. Our solutions ensure seamless transition between SMT and THT processes while maintaining the highest quality standards.

Contact SMTFullLine.com today to schedule a consultation with our insertion technology specialists. Discover how our SMT insert machines can enhance your manufacturing capabilities and provide complete assembly solutions for your most challenging applications.
