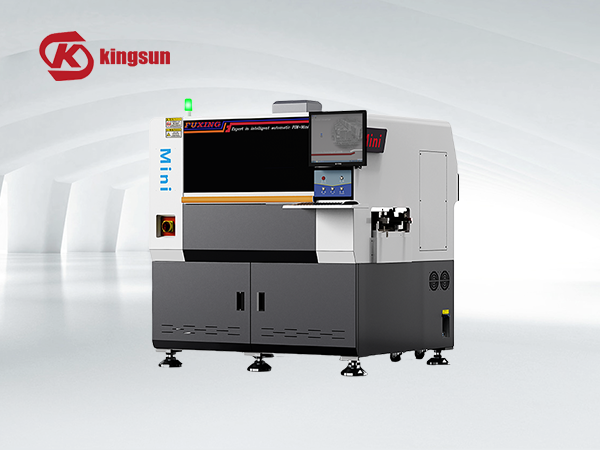

LED Insert Machine: Automated Precision for High-Speed LED Assembly Solutions

In the rapidly evolving LED manufacturing industry, achieving both production efficiency and consistent quality is paramount for maintaining competitive advantage. A specialized LED insert machine delivers unprecedented automation capabilities for high-speed, precision insertion of LED components into various substrates, including PCB boards, aluminum substrates, and flexible circuits. These advanced systems are engineered to meet the unique challenges of LED assembly, ensuring optimal performance and reliability for lighting products, display panels, and signage applications.

Why Invest in Specialized LED Insertion Technology?

Traditional component insertion machines often struggle with the specific requirements of LED assembly. A dedicated LED insert machine addresses these challenges through purpose-built features:

• Enhanced Component Handling: Specialized feeding systems gently handle fragile LED packages without damaging delicate lenses or wire bonds

• Precision Polarity Management: Advanced vision systems ensure correct polarity alignment for every LED component, eliminating reverse insertion defects

• High-Speed Operation: Optimized for rapid cycling to meet the volume demands of LED strip and array production

• Adaptable to Various Form Factors: Configurable for different LED package types including 3528, 5050, COB, and high-power modules

• Integrated Quality Verification: Built-in inspection systems detect missing components, incorrect placement, and polarity errors in real-time

Technical Capabilities and Performance Features

Modern LED insert machines incorporate sophisticated technologies to maximize production efficiency:

• High-Precision Robotics: Sub-millimeter placement accuracy ensures perfect LED alignment for consistent optical performance

• Multi-Nozzle Configuration: Simultaneous handling of multiple components significantly increases throughput rates

• Intelligent Vision Guidance: High-resolution cameras with specialized lighting ensure accurate component recognition and orientation

• Flexible Programming Interface: User-friendly software allows quick changeovers between different LED types and board layouts

• Automated Material Handling: Integrated conveyor systems and board positioning for continuous operation

Key Applications Across LED Product Categories

LED insert machines serve critical roles in diverse manufacturing scenarios:

• LED Lighting Products: Residential, commercial, and industrial lighting fixtures requiring precise LED array placement

• Digital Displays: Indoor and outdoor display panels, scoreboards, and information displays

• Automotive Lighting: Headlights, tail lights, and interior lighting modules

• Signage and Decorative Lighting: Architectural lighting, channel letters, and decorative installations

• Specialty Applications: Horticultural lighting, medical devices, and entertainment lighting

Operational Advantages for LED Manufacturers

Implementing automated LED insert machine technology delivers measurable business benefits:

• Increased Production Capacity: Achieve insertion rates 5-8 times faster than manual operations

• Improved Product Quality: Consistent insertion depth and orientation ensure uniform light output

• Reduced Labor Costs: Minimize dependence on skilled manual labor for component placement

• Enhanced Process Control: Complete data tracking for quality assurance and continuous improvement

• Quick Return on Investment: Typically achieved within 6-12 months through efficiency gains

Transform Your LED Manufacturing Capabilities

As LED technology continues to advance with smaller packages and higher density requirements, automated insertion becomes increasingly essential for maintaining product quality and manufacturing competitiveness.

Ready to upgrade your LED production line? Contact SMTFullLine.com today for a personalized demonstration of our LED insert machine solutions. Our application engineers will help you select the perfect configuration for your specific production requirements.
