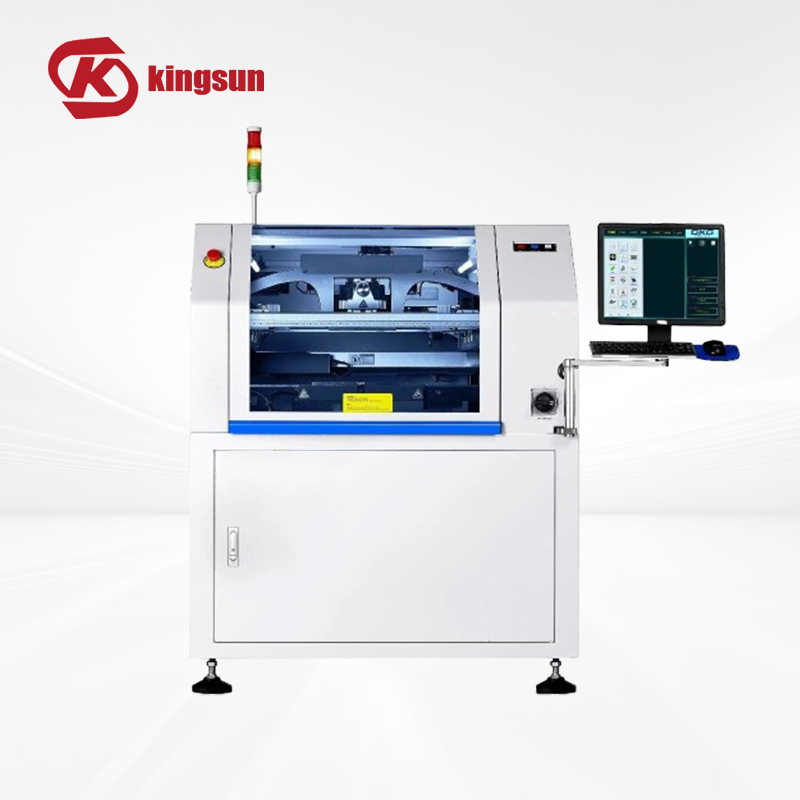

KS-G5
TECHNICAL PARAMETER
Model | KS-G5 |
Repeat Position Accuracy | ±0.01mm |
Print Accuracy | ±0.025mm |
NCP-CT | 7.5s |
Process CT | 5min |
Transfer line CT | 3min |
Maximum Board Size | 400*340mm optional upgrade：530*340mm |
Minimum Board Size | 50*50mm |
Board Thickness | 0.4~6mm |
Camera Mechanical Range | 528*340mm |
Maximum Board Weight | 3kg |
Board Edge Clearance | 2.5mm |
Board Height | 15mm |
Transport Speed | 900 ± 40mm |
Transport Speed | 1500mm/s (Max) |
Transport Direction | One stage |
Transmission Direction | Left to right,Right to Left,In and out the same |
Support System | (90mm) Magnetic Pin,(90mm) Support Block,Manual Up-down table |
Board clamp | Automatic top clamping,Side clamping,Adsorption function |
Print Speed | 10~200mm/sec |
Print Pressure | 0.5~10Kg |
Print Mode | One/Twice |
Queegee Type | Rubber/Squeegee Blade (angle 45°/55°/60°) |
Snap-off | 0~20mm |
Snap-Speed | 0~20mm/sec |
The template frame size | 470*370mm~737*737mm (thickness：20-40mm) |
Stencil positioning method | Automatic Y-direction positioning |
Cleaning System | Dry, Wet Vacuum three modes |
Cleaning system | Up Drip type |
Cleaning stroke | Automatic generation |
Cleaning position | Post cleaning |
Cleaning Speed | 10-200mm/sec |
Cleaning fluid consumption | Auto & Manually adjustable |
Cleaning paper consumption | Auto & Manually adjustable |
Successful Experience:
1. We provide the best full-line equipment solutions for customers in different industries.(such as : chip industry, consumer electronics industry, aerospace technology, automated robotics and other industries)
2. We provide machine installation services for oversea customers.
3. We Provide Machines & Clean Room One- Stop Layout and Solution.
4. KINGSUN’s engineering team is proficient in English and Technology, no communication issues.
For SMT Factory Setup, We Can Do for You:
1. We can provide SMT full line solutions and debugging services.
2. We can provide technical personnel training for customers.
3. We can provide daily maintenance & repair service.
