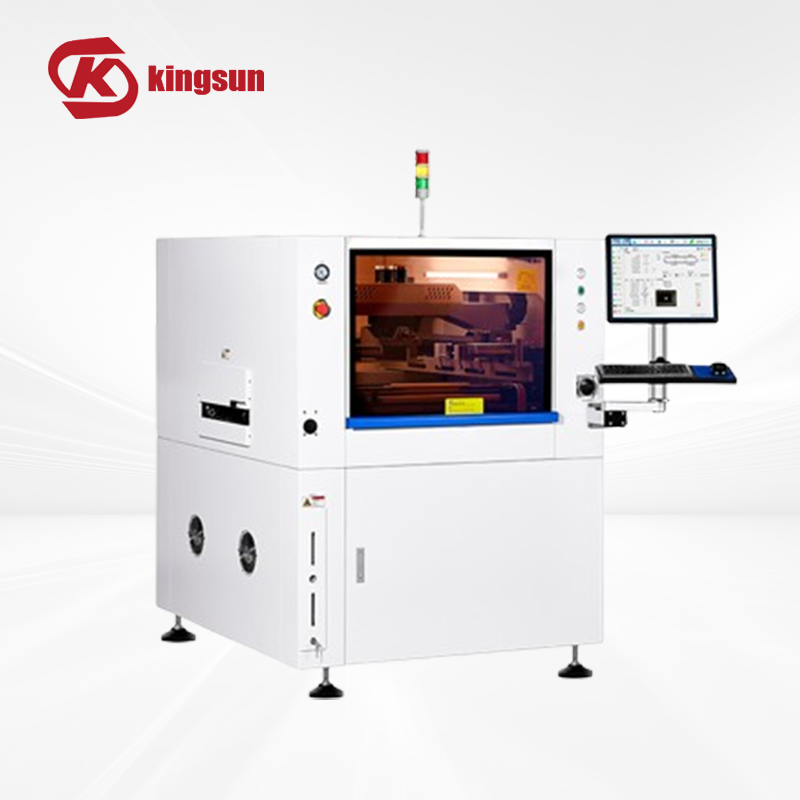

KS-G9+
TECHNICAL PARAMETER
Repeat Position Accuracy | ±10um@6σ,CPK≥2.0 |
Print Accuracy | ±18um@6σ,CPK≥2.0 |
NCP-CT | 7s |
Process CT | 4min |
Transfer line CT | 2min |
Maximum Board Size | 400*340mm optional upgrade：510*340mm |
Minimum Board Size | 50*50mm |
Board Thickness | 0.4~6mm |
Camera Mechanical Range | 450*340mm |
Maximum Board Weight | 4kg |
Board Edge Clearance | 2.5mm |
Board Height | 15mm |
Transport Speed | 900 ± 40mm |
(Max) Transport Speed | 1500mm/s (Max) |
Transport Direction | One stage |
Transmission Direction | Left to right,Right to Left,In and out the same |
Support System | （90mm） Magnetic Pin （90mm） Support Block Manual Up-down table |
Board clamp | Automatic top clamping Side clamping Adsorption function |
Print Speed | 10~200mm/sec |
Print Pressure | 0.5~20Kg |
Print Mode |
One/Twice |
Queegee Type | Rubber/Squeegee Blade (angle 45°/55°/60°) |
Snap-off | 0~20mm |
Snap-Speed | 0~20mm/sec |
The template frame size | 470*370mm~737*737mm(thickness：20-40mm） |
Stencil positioning method | Automatic Y-direction positioning |
Cleaning System | Dry, Wet Vacuum three modes |
High speed cleaning | Integrated & weave cleaning |
Cleaning system | Side spray type |
Cleaning stroke | Automatic generation |
Cleaning position | Pre cleaning |
Cleaning Speed | 10-200mm/sec |
Cleaning fluid consumption | Auto & Manually adjustable |
Cleaning paper consumption | Auto & Manually adjustable |
CCD FOV | 10*8mm |
Camera Type | 130 Thousand CCD Digital camera |
Camera System | Lock up/down optics structure |
Maging CT | 100ms |
Fiducial Mark Types | Standard Fiducial Mark Shape round、square、diamond、cross |
Mark Size | 0.15-5mm |
Mark Number | Max：4pcs |
Stay Away Number | Max：1pcs |
Power Source | AC:220 ±10%, 50/60Hz 2.2KW |
Air Pressure | 4~6Kgf/cm2 |
Air Consumption | About 5L/min |
Operating Temperature | -20℃~+45℃ |
Working Environment Humidity | 30%~60% |
Machine Dimension(without Tower light) | 1528(H) mm |
Machine Length | 1172(L) mm |
Machine Width | 1387(W) mm |
Machine Weight Approx | Approx: 1000Kg |
