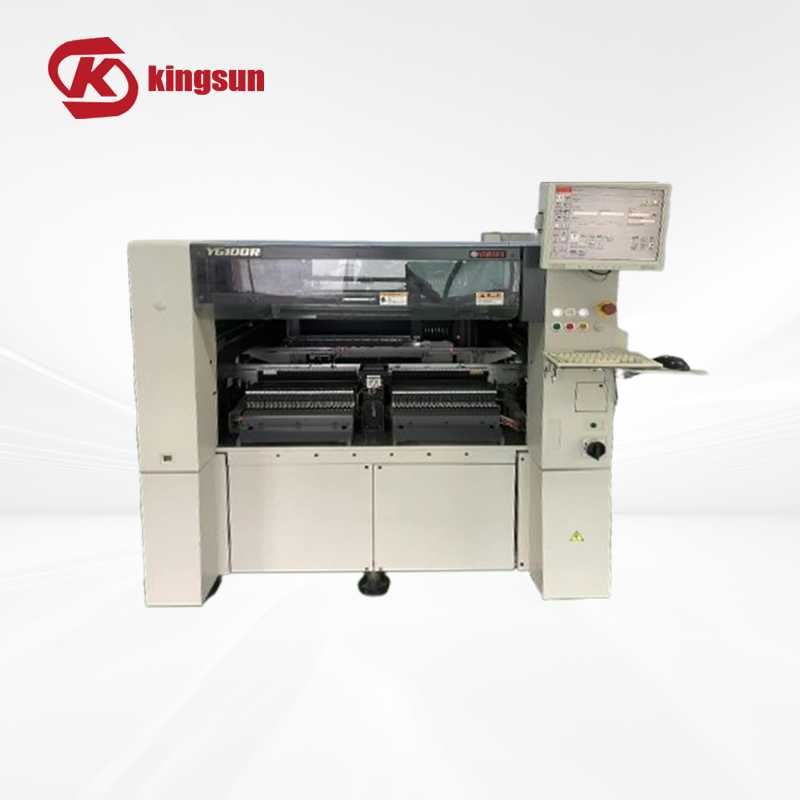

YAMAHA YG100R
Specification of Yamaha YG100 Pick and Place Machine
Model | YG100 |
Board size | M-Type: L460xW330 ~ L50xW50mm/t = 0.4 ~ 3.0mm |
Mounting speed | 0.15 seconds / accessories / 32mm QFP standard: 1.70 seconds / accessories 3) |
Mounting accuracy | Chip: ± 0.05mm (3σ) / QFP: ± 0.05mm (3σ) |
Supported components | 0402 to SOP, SOJ, 84-pin PLCC, 0.5mm pitch QFPBGA, |
Equipment Parts Height | 15mm |
Operation Software | YGOS (FullLine Mode, OnLineHelp, rich accessories and internal organs) |
Optimization Software | Basic Services (Head and Feeder Numbers, |
Power supply | 3-phase AC 416~200V, V± 10%, 50/60Hz, 4.8kVA |
Air supply | 5.5kg/ (DryAir)/140/min |
Dimension | 1,650(L)x1,562(W)x1,850(H)mm |
Weight | 1630kg |
Successful Experience:
1. We provide the best full-line equipment solutions for customers in different industries.(such as : chip industry, consumer electronics industry, aerospace technology, automated robotics and other industries)
2. We provide machine installation services for oversea customers.
3. We Provide Machines & Clean Room One- Stop Layout and Solution.
4. KINGSUN’s engineering team is proficient in English and Technology, no communication issues.
For SMT Factory Setup, We Can Do for You:
1. We can provide SMT full line solutions and debugging services.
2. We can provide technical personnel training for customers.
3. We can provide daily maintenance & repair service.
4. We can provide online video support customers to solve all the problems.
