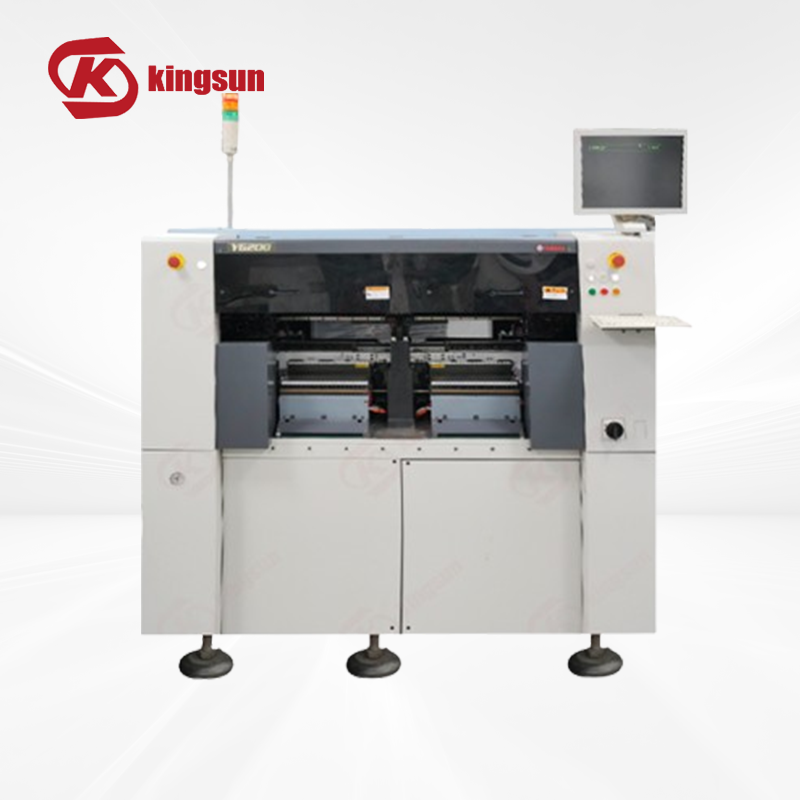

YAMAHA YG200
Specification of YAMAHA YG200 Refurbished High Speed SMT Machine
Model | YG200 |
Applicable PCB | L330×W250 mm to L50×W50 mm |
Through-put (Optimum) | 45,000 CPH, 0.08 sec/CHIP equivalent |
Mounting accuracy | Yamaha's standard components |
Absolute accuracy (μ+3σ) | +/-0.05 mm/CHIP, repeatability 3σ +/-0.03 mm/CHIP |
Applicable components | 0402 (Metric base to 14* mm components |
Height of components which can be mounted | 6.5 mm or less |
Number of component types | 80 types Max, 8 mm tape reel conversion |
Power supply | 3-phase AC 200/208/220/240/380/400/416 V +/-10% 50/60 Hz |
Air supply source | 0.55 MPa or more, in clean, dry states |
External dimension | 950×W1, 408 End of cover×H1, 450mm cover top) L1, 950×W1, 608 End of guide for feeder carriage)×H1, 450 mm cover top |
Weight | approx. 2080 kg |
Successful Experience:
1. We provide the best full-line equipment solutions for customers in different industries.(such as : chip industry, consumer electronics industry, aerospace technology, automated robotics and other industries)
2. We provide machine installation services for oversea customers.
3. We Provide Machines & Clean Room One- Stop Layout and Solution.
4. KINGSUN’s engineering team is proficient in English and Technology, no communication issues.
For SMT Factory Setup, We Can Do for You:
1. We can provide SMT full line solutions and debugging services.
2. We can provide technical personnel training for customers.
3. We can provide daily maintenance & repair service.
4. We can provide online video support customers to solve all the problems.
