YAMAHA YS12

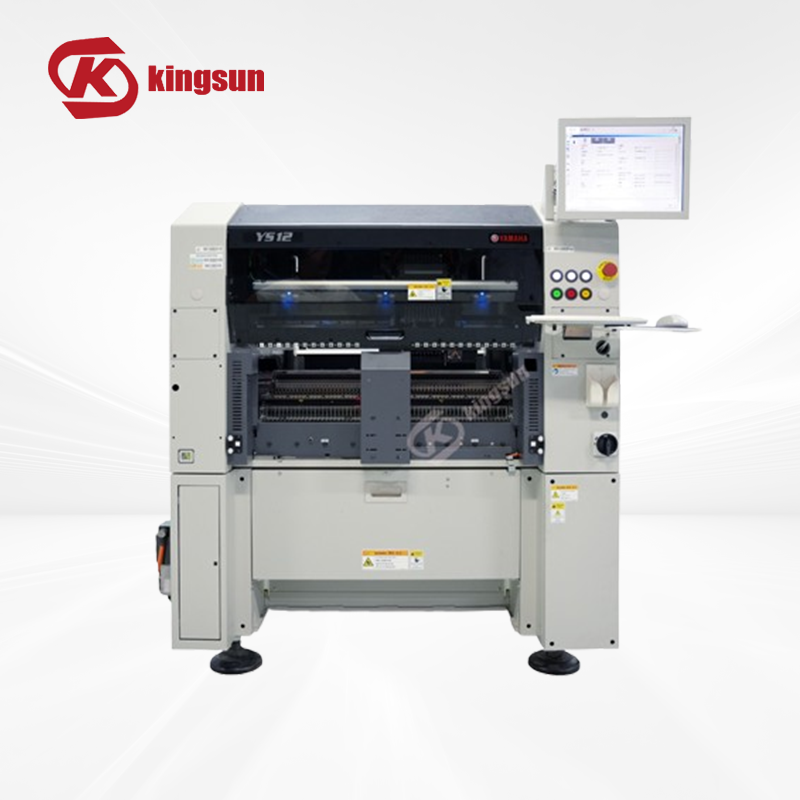

Specification of Yamaha YS12 high speed module pick and place machine
Model | YS12 | YS24 |
Applicable PCB | L510x~W460mm to L50x~W50mm | L50mm x W50mm to L700mm x W460mm |
Mounting Capability | 36,000CPH | 72,000CPH |
Mounting Accuracy | +/-0.05mm/CHIP | +/-0.05mm (μ + 3σ), +/-0.03mm (3σ) |
Number of component types | 120 types(Max, 8mm tape reel conversion) | 120 types (Max./8mm wide tape reel conversion) |
Applicable components | 0402(Metric base) to 32*mm components | 0402 to 32x32mm MAX (Height 6.5mm or less) |
External Dimensions | L 1,254 x W 1,440 x H 1,445mm | L1,254x W1,687x H1,445mm |
Successful Experience:
1. We provide the best full-line equipment solutions for customers in different industries.(such as : chip industry, consumer electronics industry, aerospace technology, automated robotics and other industries)
2. We provide machine installation services for oversea customers.
3. We Provide Machines & Clean Room One- Stop Layout and Solution.
4. KINGSUN’s engineering team is proficient in English and Technology, no communication issues.
For SMT Factory Setup, We Can Do for You:
1. We can provide SMT full line solutions and debugging services.
2. We can provide technical personnel training for customers.
3. We can provide daily maintenance & repair service.
4. We can provide online video support customers to solve all the problems.
