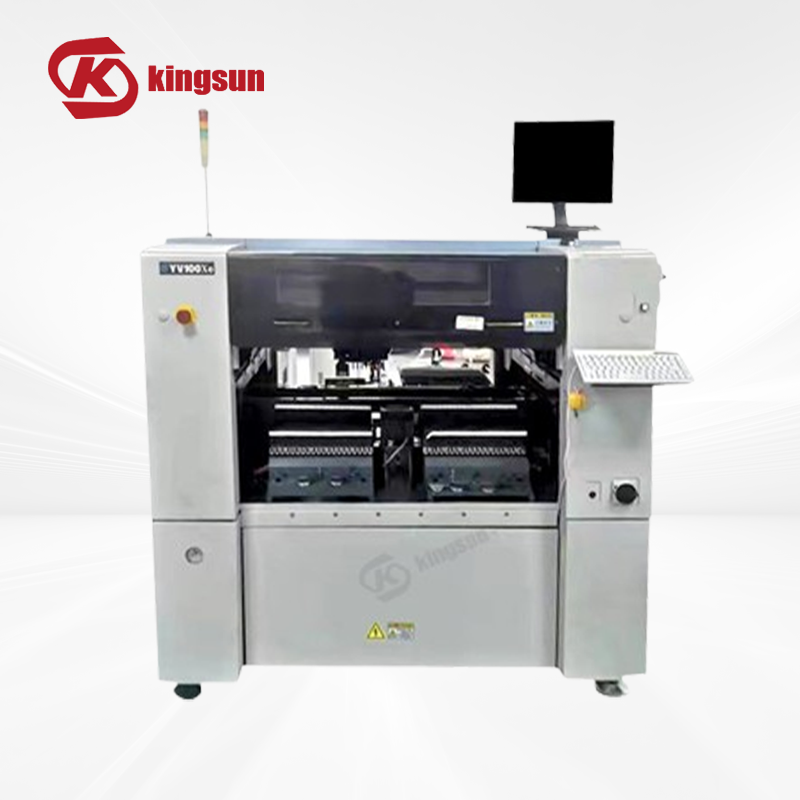

YAMAHA YV100xe

Brand

YAMAHA

Model

YV100Xe

M-Type

L460 * W335 ~ L50xW50mm / t = 0.4 ~ 3.0mm

L-Type

L460 * W440 ~ L50xW50mm / t = 0.4 ~ 3.0mm

Speed

Chip: 0.198 seconds / accessories / 32mm QFP standard: 1.70 seconds / accessories

Accuracy

Chip: ±0.1mm/QFP: ±0.08mm (different cameras according to component size)

Thickness

0.4-3.0mm

Mounting components

0.38-4.2mm

Feeder number

120ea/112ea

Power consumption

3-phase AC 416 ~ 200 V, V ± 10%, 50 / 60Hz, 3.5kVA

Air consumption

0.55Mpa or more, 350 // Min(ANR)(Max), clean and dry.

Weight

1570KG

Outline dimension (MM):

1650(L)*1408(W)*1850(H)mm
