JUKI JX-350

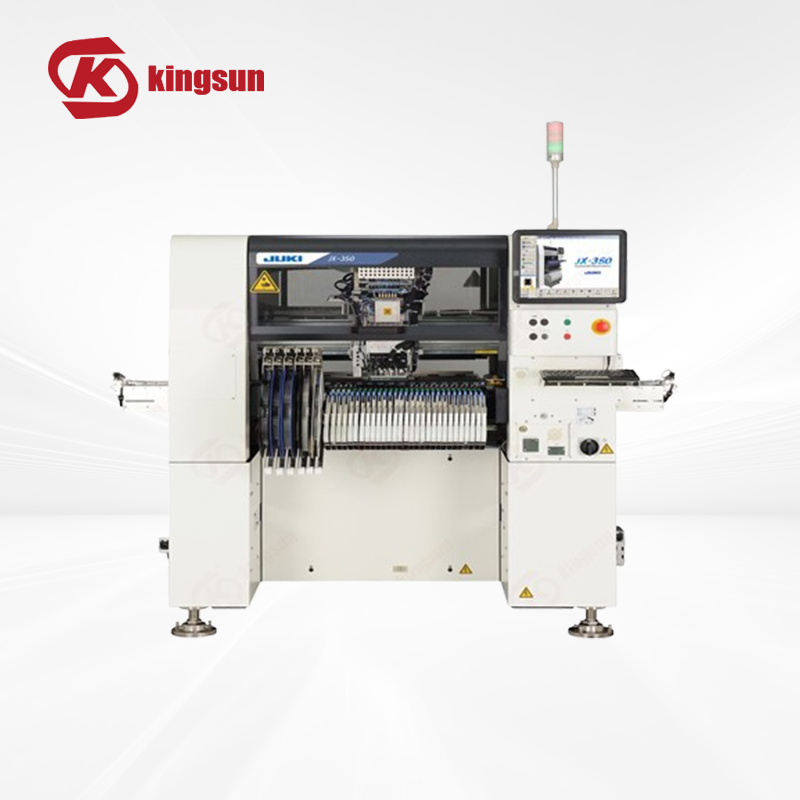

JUKI JX-350 Pick And Place Machine
Model JUKI JX-350
Brand JUKI
Consult immediately
Send inquiry
DetailConpanyFAQ

Features of Refurbished JUKI JX-350 High Efficiency SMT Placement Machine

Chip: 32,000CPH chip (Laser centering/Optimum); 21,000CPH chip (Laser centering / IPC9850).

■ From 0603 to 33.5mmsquare components.

■ JUKI laser centering for high speed, high accuracy placement.

■ Improved placement quality.

■ Alternate pick by screw-type nozzles* achieves high-speed placement for large component up to 25 mm diameter.

■ High-precision placement of diffusion lenses.

■ Capable of up to 1,500 mm long board production, top class board size in industry.

■ Various supply methods.


Specification of JUKI JX-350 High Speed Chip Shooter SMT Machine



Model

JUKI JX-350 SMT Placement

Board size

1time clamping

650mm×360㎜

2times clamping

1,200㎜×360㎜

3times clamping*

1,500㎜×360㎜

Component height

6mm/12mm


Component size

0603(0201) ~ □33.5mm


Placement speed (chip)

Optimum

32,000CPH


IPC9850

21,000CPH

Placement accuracy

±0.05mm(Cpk≧1)


Feeder inputs

Front-side fixed mechanical
feeder bank(Standard)

Max.40 in case of 8mm tape

Front+rear-side fixed mechanical
feeder bank*1

Max.80

Front+rear-side fixed electrical
feeder bank*1

Max.160*2


*1 This function is supported with an option.

*2 When using 8mm tape(on a Electric double tape feeder).
