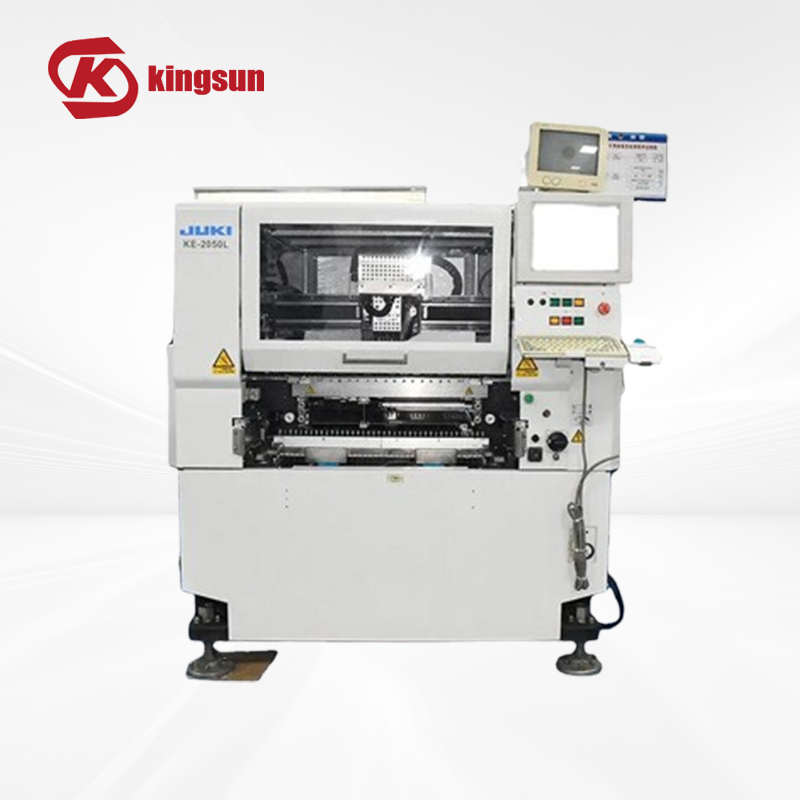

JUKI KE-2050
Specification of KE-2050 High Speed SMT Placement Machine
Model | KE-2050 |
Substrate size | M size -330 * 250mm |
L size -410×360mm | |
L -wide size-510×360mm | |
E size-510×460mm | |
Component size | Laser recognition 0603-20mm or 26.5×11mm |
Placement speed | chip components for the 13200CPH |
Component placement accuracy | laser recognition ± 0.05mm |
Feeder inputs | Max. 80 on 8mm T/F |
Power Supply | three-phase AC200 ~ 415V, 3kVA |
Air pressure | 0.49 ± 0.05Mpa |
Air consumption (standard state) | 230L / min |
Size | 1,400 × 1,393 × 1,455mm |
Weight | about 1410KG |
Successful Experience:
1. We provide the best full-line equipment solutions for customers in different industries.(such as : chip industry, consumer electronics industry, aerospace technology, automated robotics and other industries)
2. We provide machine installation services for oversea customers.
3. We Provide Machines & Clean Room One- Stop Layout and Solution.
4. KINGSUN’s engineering team is proficient in English and Technology, no communication issues.
For SMT Factory Setup, We Can Do for You:
1. We can provide SMT full line solutions and debugging services.
2. We can provide technical personnel training for customers.
3. We can provide daily maintenance & repair service.
4. We can provide online video support customers to solve all the problems.
