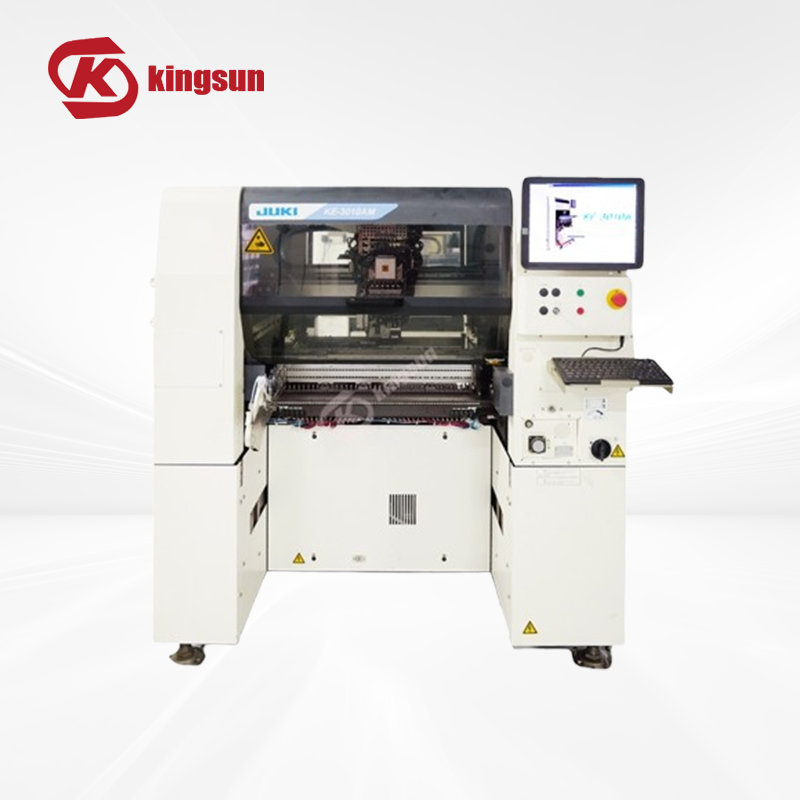

JUKI KE-3010A
Specification of JUKI KE-3010A High-Speed SMD Chip Shooter
Model | JUKI KE-3010A Pick and Place Machine | |||
Conveyor Specification | standard | 150mm conveyor extensions, | 250mm conveyor extensions, | |
Boar Size | minimum | 50*50mm | ||
1 buffer | 650*370mm(single clamping) | |||
950*370mm(double clamping) | 1,100*370mm(double clamping) | 1,200*370mm (double clamping) | ||
3 buffers | 360×370mm | 500*370mm | 600*370mm | |
Component Height | 25mm | |||
Component Size | 0201*1 ~74mm /150*50mm | |||
Placement Speed | Optimum | 47,000CPH | ||
IPC9850 | 31,000CPH | |||
Placement Accurancy | ±35μm(Cpk≥1) | |||
Feeder Inputs | max.112*2 | |||
Successful Experience:
1. We provide the best full-line equipment solutions for customers in different industries.(such as : chip industry, consumer electronics industry, aerospace technology, automated robotics and other industries)
2. We provide machine installation services for oversea customers.
3. We Provide Machines & Clean Room One- Stop Layout and Solution.
4. KINGSUN’s engineering team is proficient in English and Technology, no communication issues.
For SMT Factory Setup, We Can Do for You:
1. We can provide SMT full line solutions and debugging services.
2. We can provide technical personnel training for customers.
3. We can provide daily maintenance & repair service.
4. We can provide online video support customers to solve all the problems.
