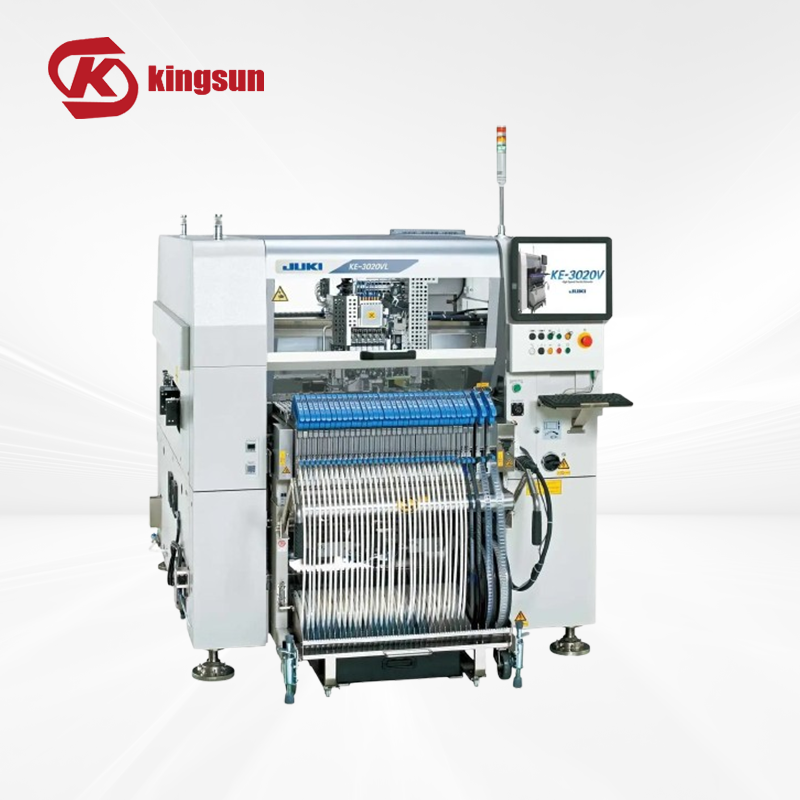

JUKI KE-3020V
Specification of JUKI KE3020V High Speed Chip Shooter SMT Machine
High-Speed Flexible Mounter KE-3020VA | |||
Board size | M size (330×250mm) | Yes | |
L size (410×360mm) | Yes | ||
L-Wide size (510×360mm) *1 | Yes | ||
XL size (610×560mm) | Yes | ||
Applicability to long PWB (L size)*2 | 800×360mm | ||
Applicability to long PWB (L-Wide size)*2 | 1,010×360mm | ||
Applicability to long PWB (XL size)*2 | 1,210×560mm | ||
Component height | 12mm | Yes | |
20mm | Yes | ||
25mm(XL size) | Yes | ||
Component size | Vision recognition | Standard camera | 3mm ~ 74mm×74mm or 50×150mm |
High-resolution camera | 1.0×0.5mm*3 ~ 48mm×48mm or 24×72mm | ||
Placement speed | Chip | Optimum | 20,900CPH |
IPC9850 | 17,1000CPH | ||
IC *4 | 9,470CPH*5 | ||
Placement accuracy | Laser recognition | ±0.05 mm (±3σ) | |
Vision recognition | ±0.03mm(MNVC ±0.04mm) | ||
Feeder inputs | Max.160 in case of 8mm tape | ||
Successful Experience:
1. We provide the best full-line equipment solutions for customers in different industries.(such as : chip industry, consumer electronics industry, aerospace technology, automated robotics and other industries)
2. We provide machine installation services for oversea customers.
3. We Provide Machines & Clean Room One- Stop Layout and Solution.
4. KINGSUN’s engineering team is proficient in English and Technology, no communication issues.
For SMT Factory Setup, We Can Do for You:
1. We can provide SMT full line solutions and debugging services.
2. We can provide technical personnel training for customers.
3. We can provide daily maintenance & repair service.
4. We can provide online video support customers to solve all the problems.
