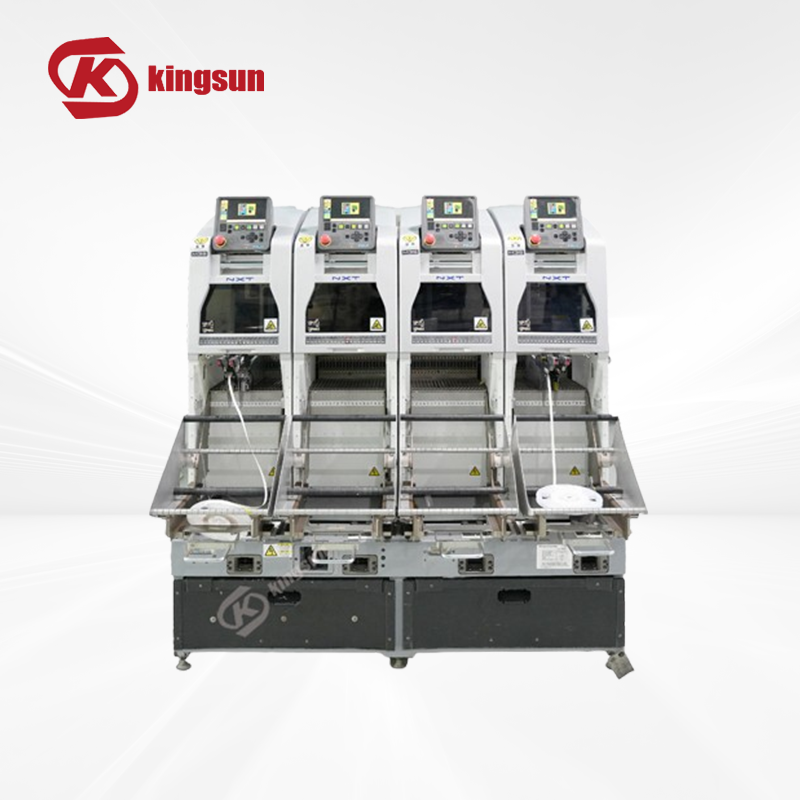

FUJI NXT-M3S
Specification of NXT-M3S SMT placement machine
ITEMS | H12S[H12] | H08 | H04 | H01 | |
Number of nozzles | 12 | 8 | 4 | 1 | |
Component size | (0402) 0603～05 | (0402)"5 0603～07.5 | 1608～D38 | 1608～74 (32×180) | |
The height of the mounted components | 3mm | 6.5mm | 9.5mm | 25.4mm | |
The height of the components to be mounted first | 3mm | 6.5mm | 9.5mm | 25.4mm | |
Component supply form | Material tape | Material tape | Material tape, material tray, material pipe | Material tape, material tray, material pipe | |
Mounting accuracy | Cpk≥1.00 | ±0.050 | ±0.050 | ±0.050 | ±0.030 |
Cpk≥1.33 | ±0.066 | ±0.066 | ±0.066 | ±0.040 | |
(CPH(chip/hour)) | M3 | 15000[14000] | 10000 | 6000 | 3500 |
M6 | 15000[14000] | 9400 | 5600 | 3200 | |
M3S | 16500[14000] | 10000 | 6000 | 3500 | |
M6S | 17000[145000] | 10000 | 6000 | 3500 | |
Pin component | minimum spacing(mm) | 0.24 | 0.24 | 0.24 | 0.24 |
Minimum widt h/diameter (mm) | 0.12 | 0.12 | 0.12 | 0.12 | |
Minimum interval (mm） | 0.12 | 0.12 | 0.12 | 0.12 | |
Successful Experience:
1. We provide the best full-line equipment solutions for customers in different industries.(such as : chip industry, consumer electronics industry, aerospace technology, automated robotics and other industries)
2. We provide machine installation services for oversea customers.
3. We Provide Machines & Clean Room One- Stop Layout and Solution.
4. KINGSUN’s engineering team is proficient in English and Technology, no communication issues.
For SMT Factory Setup, We Can Do for You:
1. We can provide SMT full line solutions and debugging services.
2. We can provide technical personnel training for customers.
3. We can provide daily maintenance & repair service.
