SM320

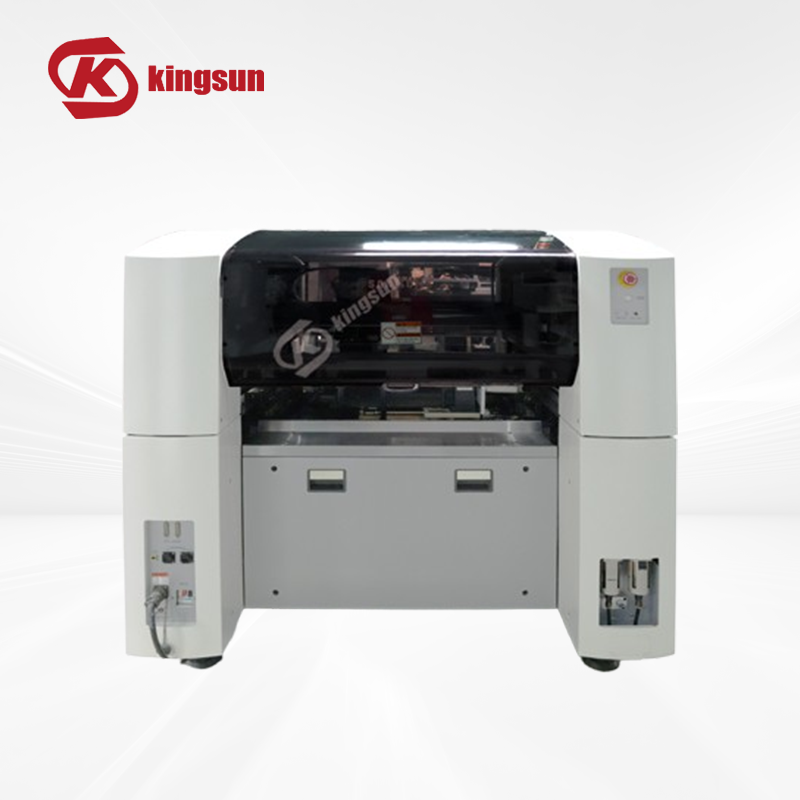

Specification of SM320 Pick and Place Machine
Brand | SAMSUNG |
Model | SM320 |
Mounting speed | CHIP 1608 18500 CPH;SOP 16000 CPH; QFP 5500 CPH; |
Placement accuracy | +/-50um Chip (Cpk 1) +/-30um /QFP (Cpk 1) |
Number of axes | 6 axis *1 stand |
Maximum height | H=12mm (standard flying camera) H=15mm (standard fixed camera) |
PCB size | minimum 50L*40W maximum 460L*400W/ options: 510L*460W, 610L*510W |
PCB thickness | 0.38-4.2mm |
Feeder number | 120ea/112ea |
Power consumption | AC220/208/220/240/380/415V (HZ 50/60, 3 PHASE) |
Air consumption | 5-7kg/ square meters, 150 NL/MIN |
Weight | 1800KG |
Outline dimension (MM): | L1650*W1680*H1530 |
Successful Experience:
1. We provide the best full-line equipment solutions for customers in different industries.(such as : chip industry, consumer electronics industry, aerospace technology, automated robotics and other industries)
2. We provide machine installation services for oversea customers.
3. We Provide Machines & Clean Room One- Stop Layout and Solution.
4. KINGSUN’s engineering team is proficient in English and Technology, no communication issues.
5. We can provide SMT full line solutions and debugging services.
6. We can provide technical personnel training for customers.
7. We can provide daily maintenance & repair service.
8. We can provide online video support customers to solve all the problems.
