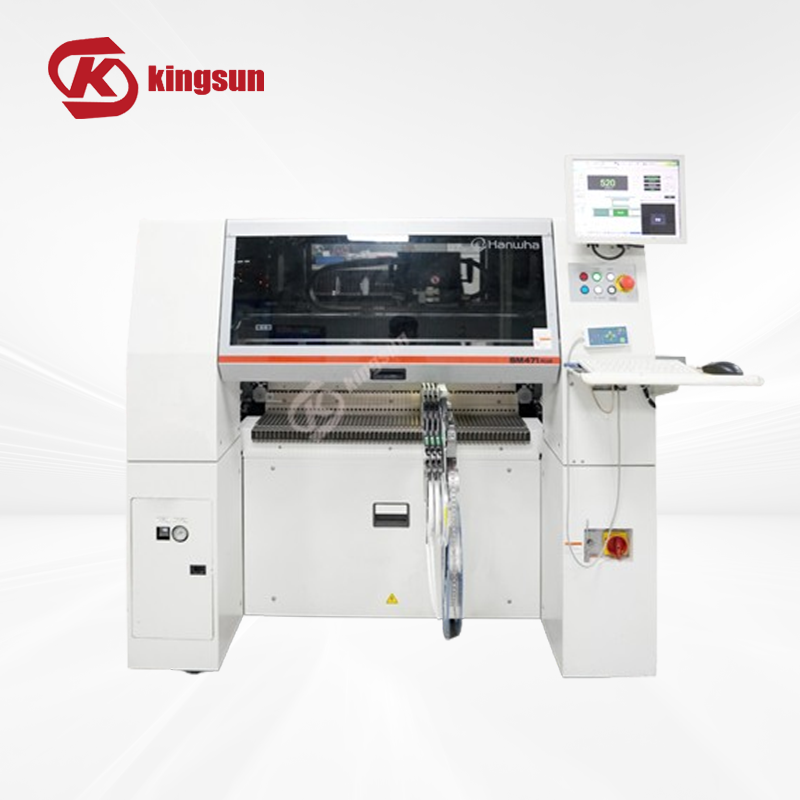

SM481 plus

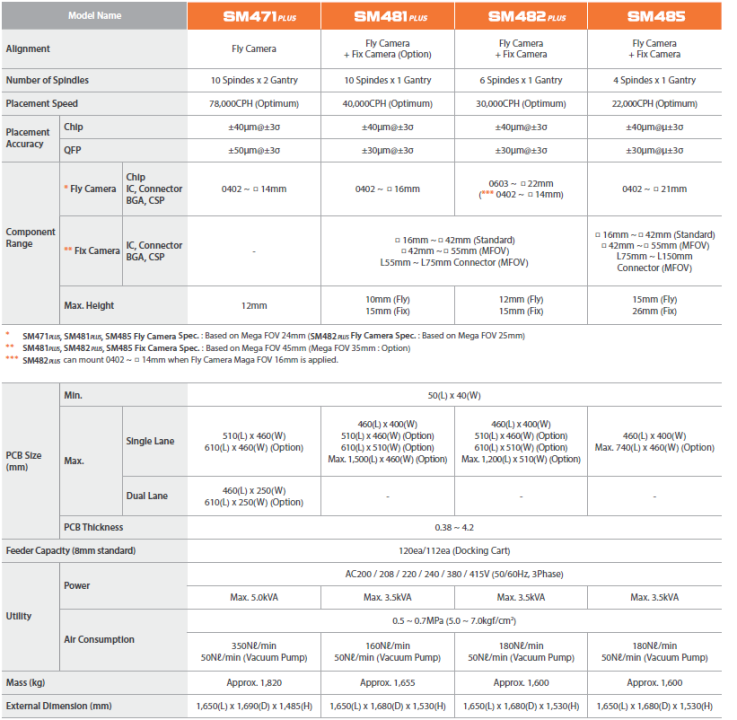

Model Name | SM471Plus | SM481Plus | SM482Plus | SM485 | ||
Allgnment | Fly Camera | Fly Camera +FixCamera (Option) | FyCamera +FiIxCamera | Hy Camera +Fx Camera | ||
Number of Spindles | 10 Spindesx2Gantry | 10 Spindesx1Gantry | 6Spindesx1Gantry | 4Spindesx1Gantry | ||
Placement Speed | 78,000CPH (Optimum) | 40,000CPH Optimum) | 30,000CPH (Optimum) | 22,000CPH (Optimum) | ||
Placement Accuracy | Chip | ±40μm@±30 | ±40μme±30 | ±40μme±30 | ±40umou±30 | |
QFP | ±50μmo±30 | ±30μm±30 | ±30μmo±30 | ±30umou±30 | ||
Component Range |
Ry Camera | Chlp IC,Connector BGA,CSP |
0402~□14mm |
0402-□16mm | 0603~022mm (**0402~014mm) |
0402~□21mm |
Fx Camera |
IC,Connector BGA,CSP | □ 16mm~口42mm (Standard) □42mm~055mm(MFOV) L55mm~L75mm Connector (MFOV) | □16mm~042mm (Standard) □42mm~055mm (MFOV) L75mm~L150mm Connector (MFOV) | |||
Max.Helght | 12mm | 10mm(Fy) 15mm (FDg | 12mm (Fly 15mm (Fix) | 15mm(Fly) 26mm (FDxg) | ||
*SM471Plus,SM481Plus,SM485 Fly Camera Spec:Based on Mega FOV24mm
(SM482Plus Fy Camera Spec:Based on Mega FOV25mm)
**SM481Plus,SM482Plus,5M485 Fix Camera Spec.:Based on Mega FOV45mm
(Mega FOV 35mm:Option)
***SM482Plus can mount 0402~□14mm when Fly Camera Maga FOV 16mm is applied.
PCB SLze (mm) | Min. | 50(L)x40(W) | ||||
Max. |
Single Lane |
510(L)x460(W) 610(L)x460(W)(Option) | 460L)x400(W) 510L)x460(W)(Option) 610L)×510(W)(Option) Max.1,500()x460(W)(Option) | 460L)x400(W) 510(L)x460(W)(Option) 610(L)×510(W)(Option) Max 1,200(L)×510(W)(Option) |
460(L)x400(W) Max.740(L)×460(W)(Option) | |
Dual Lane | 460(L)x250(W) 610(L)x250(W)(Option) | |||||
PCBThickness | 0.38~4.2 | |||||
Feeder Capadty (8mm standard) | 120ea/112ea (Docking Cart) | |||||
Utility |
Power | AC200/208/220/240/380/415V (50/60Hz,3Phase) | ||||
Max.5.0KVA | Max 3.5KVA | Max 3.5KVA | Max.3.5KVA | |||
AIr Consumption | 0.5~0.7MPa(5.0~7.0kgf/cm) | |||||
350NE/min 50Ne/min(Vacuum Pump) | 160Ne/min 50Ne/min(Vacuum Pump) | 180Ne/min 50Ne/min (Vacuum Pump) | 180Ne/min 50Ne/min (Vacuum Pump) | |||
Mass (kg) | ApproX 1,820 | ApproX1,655 | ApproX 1,600 | ApproX1,600 | ||
External Dmenslon (mm) | 1,650(L)x 1,690[D]x1485H] | 1,650(L)x1,680(D)x1,530H) | 1,650(L)x 1,6B0D)×1,530(H) | 1650((L)×1,680(D)x1,530H) | ||
