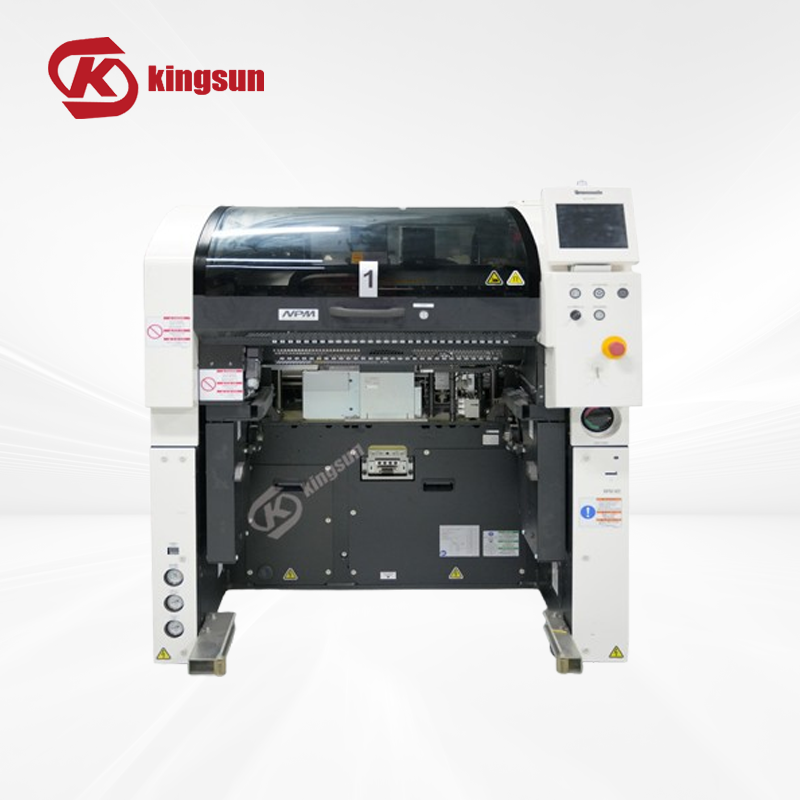

NPM-W2 Pick And Place Machine

Model NPM-W2

Brand Panasonic

Consult immediately

Send inquiry

DetailConpanyFAQ

Specification of Panasonic SMT Chip Mounter

Product name		Panasonic NPM W2 SMT Chip Mounter
Model		NPM-D3	NPM-W2	NPM-TT2	NPM-W2S
Concept		Dual-gantry, multi-head, process-driven module	Dual-gantry, multi-head, process-driven module	Dual-gantry, multi-head, process-driven module	Single-gantry, multi-head, process-driven module
Drive system		High-accuracy, low-maintenance, linear-motor driven gantry(s) system
Component alignment		Multi-recognition digital camera
Head design options		Inline array of 16, 12, 8, 3 and 2(D3) nozzle heads
Applicable heads		16, 12, 8, 2	16, 12, 8, 3	8, 3	16, 12, 8, 3
Board dimensions (Single lane)		L 510mm x W 590mm	L 750mm x W 550mm 1200mm long PCB opt	L 510mm x W 590mm	L 750mm x W 550mm 1200mm long PCB opt
Board dimensions (Dual lane)		L 510mm x W 300mm L 510mm x W 550mm *1	L 750mm x W 260mm L 750mm x W 510mm 1 2	L 510mm x W 300mm L 510mm x W 550mm *1	L 750mm x W 260mm L 750mm x W 260mm 1 2
Placement accuracy	Chip	±25μ Cpk ≥ 1.0 *4	±25μ Cpk ≥ 1.0 *4	±40μ Cpk ≥ 1.0	±25μ Cpk ≥ 1.0 *4
Placement accuracy	QFP	±30μ Cpk ≥ 1.0	±30μ Cpk ≥ 1.0	±30μ Cpk ≥ 1.0	±30μ Cpk ≥ 1.0
Throughput	Ideal	Up to 84,000 CPH	Up to 77,000 CPH	Up to 36,000 CPH	Up to 38,500 CPH
Throughput	IPC9850	63,300 CPH (1608C) *3	59,200 CPH (1608C) *3	8,300 CPH (208 QFP) *3	30,000 CPH (1608C) *3
Component range	Min	03015 microchip *4	03015 microchip *4	0402 microchip	03015 microchip *4
	Max	100mm x 90mm	150mm x 25mm	150mm x 25mm	150mm x 25mm
	Height	28mm	30mm	30mm	30mm
	Special height	-	40mm	-	40mm
	Insertion force	.5N ~ 50N	.5N ~ 100N	.5N ~ 100N	.5N ~ 100N
Feeder capacity	Reels w/ no tray feeder	68	120	120	120
	Reels w/ tray tower	24	86	86	86
	Reels w/ twin tower	N/A	60	N/A	60
	Reels w/ 2 tray towers	N/A	N/A	52	N/A
	Trays w/ tray tower	20	20	20	20
	Trays w/ twin or 2 tray towers	N/A	40	40	40
Facilities	Electric	Voltage: 3 Phase AC 200/220 ±10V; AC 380 400 420 480V ±20V Frequency: 50/60 Hz
		2.7KVA	2.8KVA	2.5KVA	2.0KVA
		Peak current 30A @ 200V	Peak current 40A @ 200V	Peak current 38A @ 200V	Peak current 22A @ 200V
	Pneumatic	.5 ~ .8MPa, 100L/min	.5 ~ .8MPa, 200L/min	.5 ~ .8MPa, 200L/min	.5 ~ .8MPa, 200L/min
	Mass	1900kg w/ 2 carts	2850kg w/ 2 carts	3090kg w/ 2 carts	2850kg w/ 2 carts

Successful Experience:

1. We provide the best full-line equipment solutions for customers in different industries.(such as : chip industry, consumer electronics industry, aerospace technology, automated robotics and other industries)

2. We provide machine installation services for oversea customers.

3. We Provide Machines & Clean Room One- Stop Layout and Solution.

4. KINGSUN’s engineering team is proficient in English and Technology, no communication issues.

5. We can provide SMT full line solutions and debugging services.

6. We can provide technical personnel training for customers.

7. We can provide daily maintenance & repair service.

8. We can provide online video support customers to solve all the problems.
