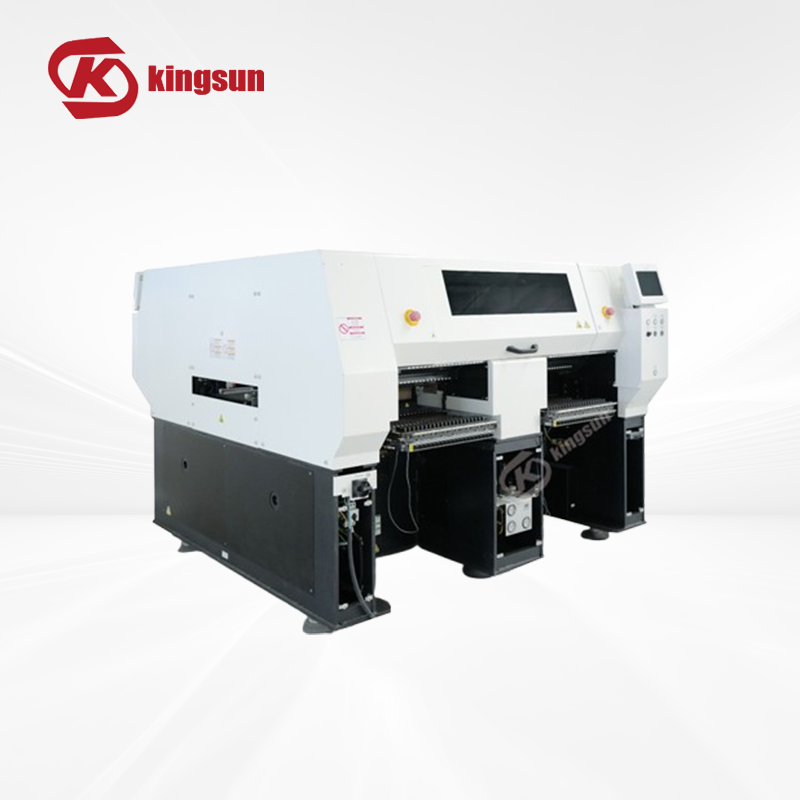

Panasonic AM100 Pick And Place Machine

Model Panasonic AM100

Brand Panasonic

Consult immediately

Send inquiry

DetailConpanyFAQ

Specification of AM100 SMT placement machine

Product Name	PANASONIC AM100 SMT Placement Pick and Place Machine
Concept	Scalable single gantry hybrid drive platform
Drive system	Highly accurate linear motor hybrid drive
Component alignment	Digital color line scan camera, fixed position
Head design	14-spindle ultra high flex head
Board dimensions	510 x 460mm (20 x 18") standard 1,200 x 460mm (47 x 18") optional 1,500 x 460mm (59 x 18") optional
Board thickness	Up to 8mm
Placement accuracy	±40 micron Cpk ≥1.0 chip; ±30 micron Cpk ≥1.0 QFP
Throughput	Ideal: 35,800 cph; IPC9850: 22,000 cph
Component range	Minimum: 01005 (0402M) Maximum: 120 x 90mm (4.7 x 3.5") and 150 x 25mm (6 x 1") Height: Up to 28mm (1.1") Bumps: 0.15mm diameter, 0.5mm pitch
Feeder capacity	Reels: Up to 160 reels Tubes: Up to 78 tubes Trays: Up to 40 trays Strip tape: Up to 200 part numbers, optional
Facilities	Electric: Three-phase AC 200/220V ±10V, AC 380/400/420/480V ±20V 2.0 kVA400V 2 KVA Pneumatic: Min 0.5 MPa to Max 0.8MPa, 200 L/min (A.N.R.) Mass: 2370 Kg (Main body with four feeder banks) Dimensions: W 1,970 x L 2,019 x H 1,500mm
