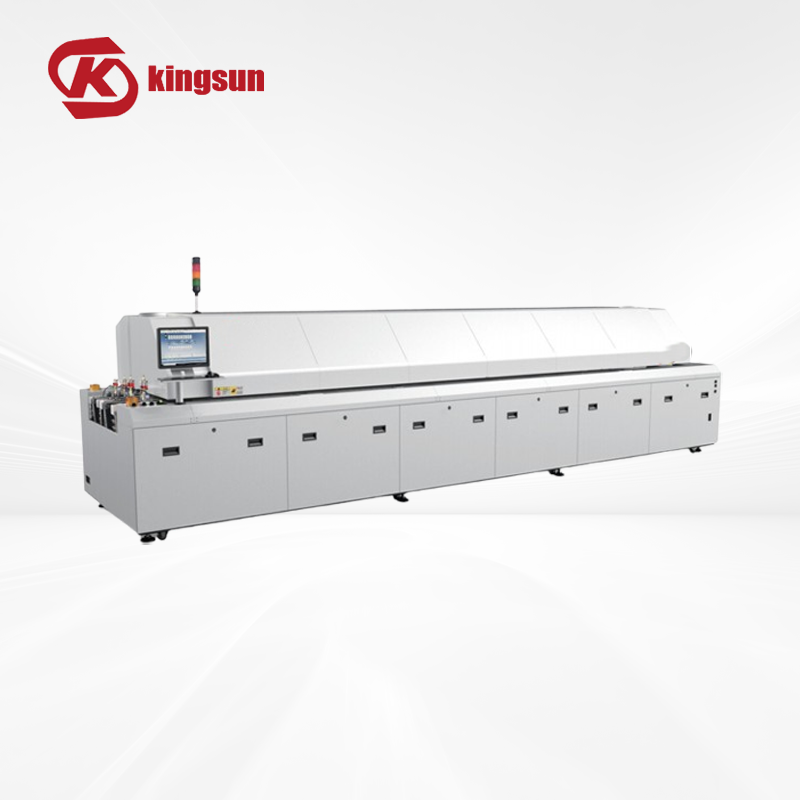

KS-A1000D（Double Rail）
TECHNICAL PARAMETER
Model | KS-A800 | KS-A1000 | KS-A800D | KS-A1000D |
Heated Length | 3110mm | 3890mm | 3110mm | 3890mm |
Dimensions(L×WXH) | 5220×1430×1530mm | 6000×1430×1530mm | 5220×1660×1530mm | 6000×1660×1530mm |
Net Weight | Approx.2250kg | Approx.2600KG | Approx.2600KG | Approx.2950KG |
Exhaust Volume | 10m3/min×2 Ducts | |||
Supply Power | AC,380V3φ5W50/60Hz(Optional:AC,220Vφ350/60Hz) | |||
Power | Starting:30KW | Starting:36KW Operating:10KW | Starting:32KW | Starting:38KW |
Heat up Time | Approx.25min | Approx.30min | ||
Temp.Range | Room temperature-300℃ | |||
Max.Width of PCB | 400mm(Option:450mm) | 270mm×2(Single Rail 50-490mm) | ||
PCB Top Height | 30mm/下25mm Top 30mm/Bottom 25mm | |||
Conveyor Direction | Left to Right(Option:Right to Left) | |||
Fixed Rail Side | Front Rail Fixed(Option:Rear Rail Fixed) | 1st &4rd Rails Fixed(Option:1st&3th Rails Fixed) | ||
Conveyor Height | 900±20 mm | |||
Conveyor Speed Range | 300-2000mm/min | |||
Data Storage | Various parameters and storable | |||
AbnormalAlarm | Abnormal Temp. (Over/under-heat.)Sound&Light Alarm | |||
NO.of heating zones | Top 8/Bottom 8 | 10 Top 10/Bottom 10 | 8 Top8/Bottom8 | 10 Top 10/Bottom 10 |
NO.of cooling zones | Top 2 Cooling Zones | |||
Control System | WIN10+Computer+PLC | |||
Temp.Control Method | PID+SSR | |||
Thermocouple Wire | 4wires | |||
Conveyor System | Single Rail+Mesh | Dual-Rail+Mesh | ||
Conveyor Control Mode | Inverter+lmport Conveyor Motor | |||
Chain Structure | Single side link avoid block | |||
Width Adjustment | Electric adjustable | |||
Cover Open | Electric open for easy maintenance. | |||
UPS Power | Backup power supply to ensure PCB production finish normally. | |||
Cooling System | Forced Air Cooling | |||
Successful Experience:
1. We provide the best full-line equipment solutions for customers in different industries.(such as : chip industry, consumer electronics industry, aerospace technology, automated robotics and other industries)
2. We provide machine installation services for oversea customers.
3. We Provide Machines & Clean Room One- Stop Layout and Solution.
4. KINGSUN’s engineering team is proficient in English and Technology, no communication issues.
For SMT Factory Setup, We Can Do for You:
1. We can provide SMT full line solutions and debugging services.
2. We can provide technical personnel training for customers.
3. We can provide daily maintenance & repair service.
