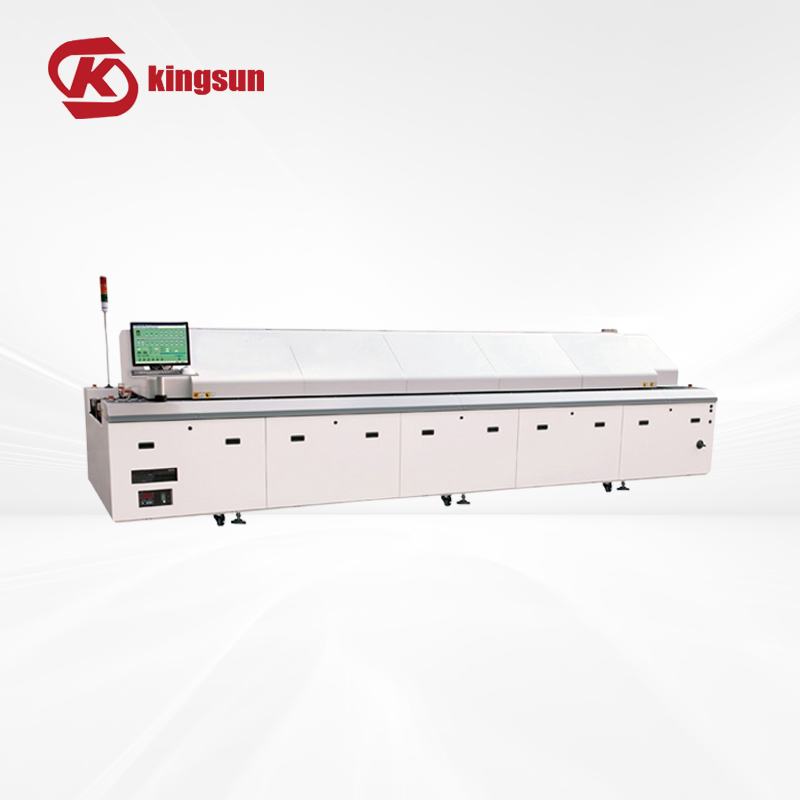

KS-R800
Model | KS-R800 | KT-R800D |
Machine parameter | ||
Dimension(L x W x H) | 5825 x 1430 x 1530mm | 5825 x 1680 x 1530mm |
Color | Computer grey | Computer grey |
Weight | Approx.2830kg | Approx.3170kg |
Number of heating zone | Top 8/Bottom 8 | |
Length of heating zone | 3110mm | |
Number of cooling zone | Top 4/Bottom 4 | |
Rectifying plate structure | Small circulation | |
Rectifying plate texture ofmaterial | Golden nano-hard oxidation of American Lyric board | |
Exhaust volume requiement | 11m³/minx2(Exhausts) | |
Control system | ||
Power supply requiement | 3 phase, 380V 50/60Hz(Option:3 phase,220V 50/60Hz) | |
Total power | 64KW | 67KW |
Startup power | 30KW | 32KW |
Normal power consumption | 9KW | 10KW |
Warming Time | 约Approx:20min | |
Temperature control range | Room temperature-300°C | |
Temperature control method | PID close loop control+SSR driving(computer+PLC) | |
Temperature control precision | ±1°C | |
Temperature deviation on PCB | ±1.5°C (By RM board test standard) | |
Data storage | Process data and status storage | |
Abnormal alarm | Abnormal temperature(Extra-high/Extra-low temperature after constant temperature) | |
Board dropped alarm | Signal light:Yellow-warming;Green-normal;Red-abnormal | |
Conveyor system | ||
Rails | Overall sectional type | |
Chain structure | Double buckle for preventing board jammed | |
Max width of PCB | 400mm(Option:460mm)/Dual-rail300mmx2 | |
Range of rail width | 50-400mm(Option:50-460mm)/Dual-rail300mmx2 | |
Components height | Top30/bottom 30mm | |
Conveyor direction | L→R(Option:R→L) | |
Conveyor rail fixed type | Option: Rear rail fixed | |
PCB conveyor direction | Air-Reflow Chain+Mesh;(N₂-Reflow- Chain,Option:Mesh) | |
Conveyor height | 900±20mm | |
Conveyor speed | 300-2000mm/min | |
Auto-lubrication | Multi-lubricating mode can be chosen | |
Cooling system | ||
Cooling method | Firced air Water chiller | |
Options | ||
Nitrogen system(Reserved) | The standard configuration with "-N" includes a nitrogen-sealed structure and pipeline, a nitrogen flowmeter, and a chiller | |
Full nitrogen system | Just add an oxygen analyzer (intubation type) on the basis of the nitrogen reserved in the previous column | |
Nitrogen consumption | (400mm width):300-1000ppm O₂ ppm,10-20m³/hr N₂ consumption:(610mm width):500-1000ppm O₂ ppm，25-30m³/hr | |
Central support | It will be no mesh if choose center support system | |
Dual-rail conveyor | 300x2mm | |
Thermal management system and analysis | ||
KIC RPI Reflow Process Inspection System | Option | |
