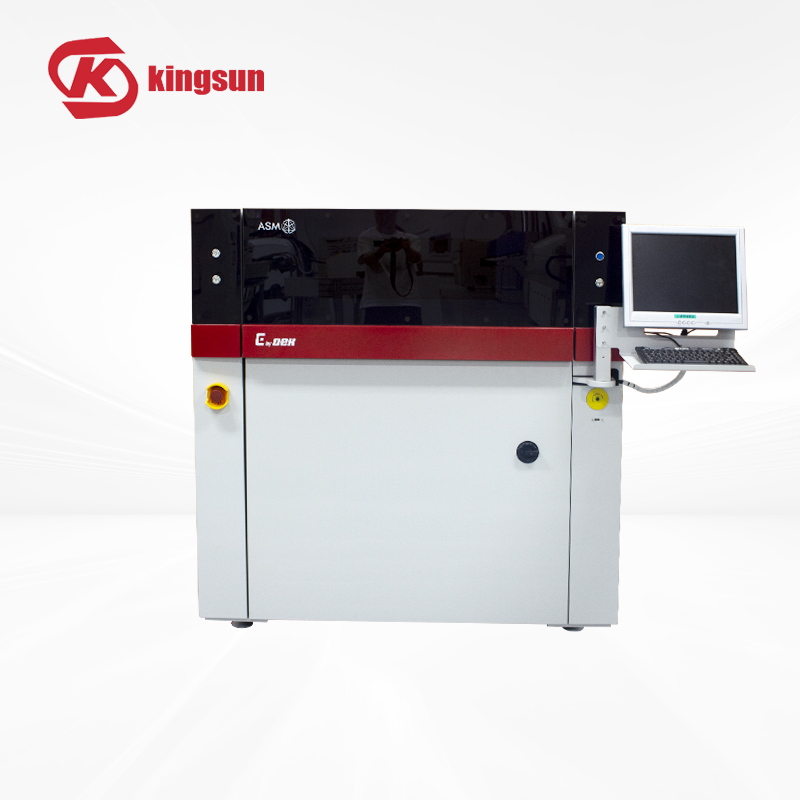

DEK Eby
TECHNICAL PARAMETER
Model | DEK EBY |
Printing Accuracy | ±12.5 μm @ 6 Sigma, Cpk >2 |
Repeatability | ±2 μm |
Maximum PCB Size | 510mm × 508mm (20″ × 20″) |
Minimum PCB Size | 50mm × 50mm |
PCB Thickness | 0.4mm – 6.0mm |
Stencil Frame Size | 470mm × 300mm to 737mm × 737mm |
Print Speed | Up to 10 seconds per cycle (excluding loading/unloading) |
Squeegee System | Motorized with programmable pressure control |
Cleaning System | Automatic (dry, wet, and vacuum) |
Alignment System | Vision-based alignment with high-res cameras |
Control Interface | Windows-based software with touchscreen |
Power Supply | AC 220V, 50/60Hz |
Air Supply | 4–6 bar (Clean and Dry Air) |
Machine Dimensions | Approx. 1500mm (L) × 1400mm (W) × 1500mm (H) |
Machine Weight | Approx. 1200 kg |
Successful Experience:
1. We provide the best full-line equipment solutions for customers in different industries.(such as : chip industry, consumer electronics industry, aerospace technology, automated robotics and other industries)
2. We provide machine installation services for oversea customers.
3. We Provide Machines & Clean Room One- Stop Layout and Solution.
4. KINGSUN’s engineering team is proficient in English and Technology, no communication issues.
For SMT Factory Setup, We Can Do for You:
1. We can provide SMT full line solutions and debugging services.
2. We can provide technical personnel training for customers.
3. We can provide daily maintenance & repair service.
