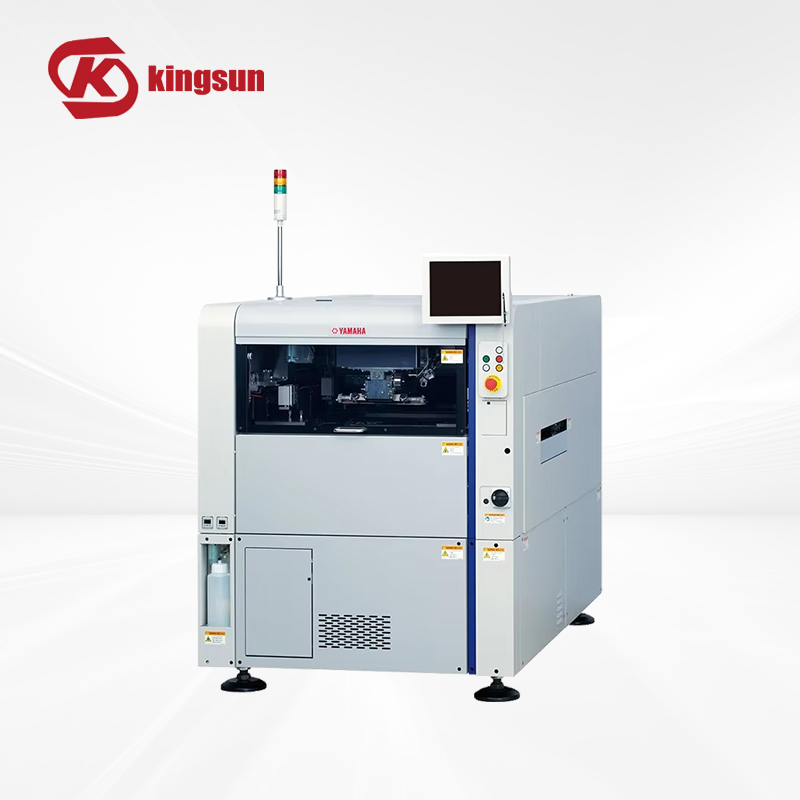

YCP10
TECHNICAL PARAMETER
Applicable PCB | L510 x W460mm to L50 x 50mm |
Printing head | 3S head (3S : Swing Single Squeegee) |
Printing accuracy | Positioning repeatability (6σ) : +/- 0.010mm |
Cycle time | 8sec (Standard printing : under optimum condition, except for printing time) |
Applicable stencil size | L750 x W750mm, L736 x W736mm, L750 x W650mm, |
Power supply | Single-phase AC 200/208/220/230V +/- 20V 50/60Hz |
Air supply source | 0.45MPa or more, in clean, dry state |
External dimension | L1,130mm x W1,760mm x H1,370mm |
Weigh | Approx. 1,100kg |
Successful Experience:
1. We provide the best full-line equipment solutions for customers in different industries.(such as : chip industry, consumer electronics industry, aerospace technology, automated robotics and other industries)
2. We provide machine installation services for oversea customers.
3. We Provide Machines & Clean Room One- Stop Layout and Solution.
4. KINGSUN’s engineering team is proficient in English and Technology, no communication issues.
For SMT Factory Setup, We Can Do for You:
1. We can provide SMT full line solutions and debugging services.
2. We can provide technical personnel training for customers.
3. We can provide daily maintenance & repair service.
