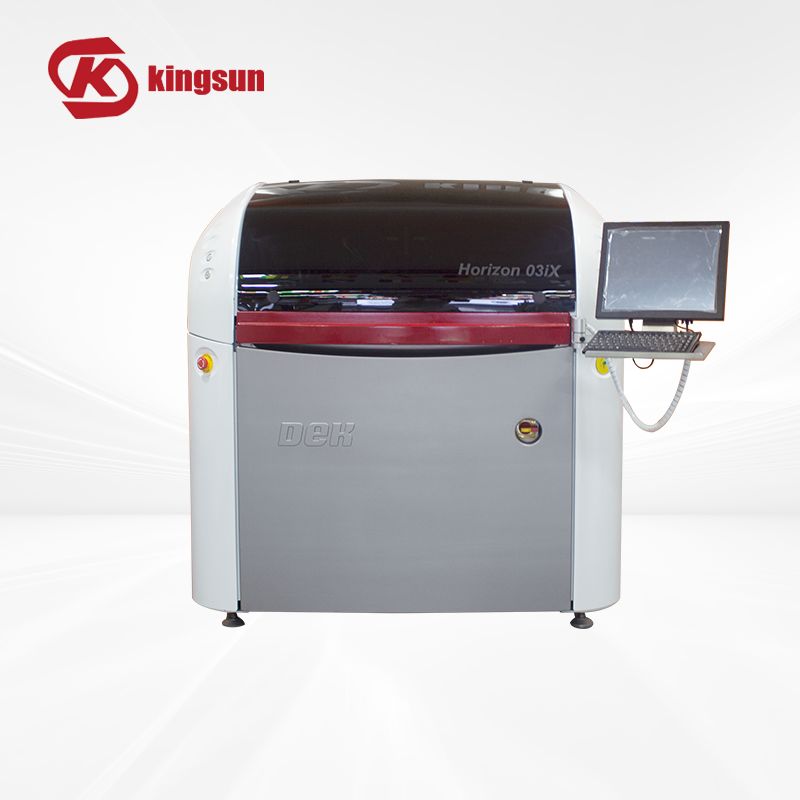

DEK 03IX
TECHNICAL PARAMETER
Model | Horizon 03iX |
Operating System | Win XP+09sp13 or up |
PCB support Tooling | Magnetic tooling pins |
Camera type | Hawkeye 750 or Hawkeye 1700 (optional) 198040 198043 hawkeye |
Board foil clamp size | 250mm—520mm ( depends on your requirement ) |
Screen cleaner | Under Blue screen cleaner |
Max Print Area | 510x508mm |
Transport System Type | Front Rail Fixed and board clamp |
Transport System Direction | Left to right, Right to left, Left to left, Right to right (System setup) |
PCB thickness | 0.2-6mm |
PCB Weight | 0-1kg |
Screen Frame Size | 736x736mm |
Print Modes | Standard Print head |
Machine Alignment Capability | 2.0@±25microns |
Other function (optional) | Automatic Fiducial Setup |
Fast Print Speed | |
Small Fiducial | |
Net working | |
On board, reported via operator interface (QC-CALC) | |
2D Inspection | |
Blue Under Screen Cleaner, fully programmable with wet/dry/vacuum wipe with external solvent tank, Cyclone high speed cleaner, | |
Vacuum tooling capability, Vacuum tooling sensor, Vacuum cups, etc. | |
Voltage | AC 220V 50-60Hz |
Machine weight | 700Kg |
Machine Size | L1400xD1800xH1500mm |
Successful Experience:
1. We provide the best full-line equipment solutions for customers in different industries.(such as : chip industry, consumer electronics industry, aerospace technology, automated robotics and other industries)
2. We provide machine installation services for oversea customers.
3. We Provide Machines & Clean Room One- Stop Layout and Solution.
4. KINGSUN’s engineering team is proficient in English and Technology, no communication issues.
For SMT Factory Setup, We Can Do for You:
1. We can provide SMT full line solutions and debugging services.
2. We can provide technical personnel training for customers.
3. We can provide daily maintenance & repair service.
