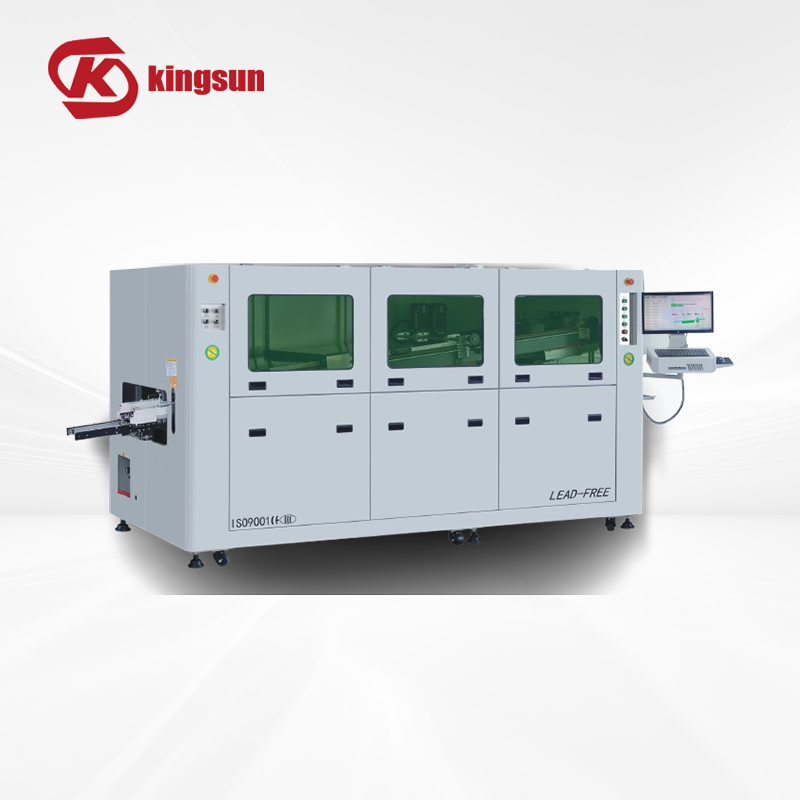

KS-KTU350
TECHNICAL PARAMETER
KS-KTU350 | |
Dimension(L x W x H) | 4500 x 1500 x1800mm |
Power supply | 3P5W,380V AC,50/60Hz,63A |
Toral power | 25KW |
Startup power | 15KW |
Working power | Approx.3-8KW |
Control system | PC+PLC |
Preheat mode | Hot-Air |
Swpeed control | Stepless frequency (N/A) |
Preheat zone No | 4 |
Preheat length | 1800mm |
Preheat temp | Room temp.~250℃ |
Driving type | Mechanical pump,Oven:titanium/ball milling case iron |
Pot capacity | KTU-350;500kg-550kg |
Max.Stove temp | Max.300°C |
Max.Stove used temp | Max.280°C |
Temp.control mode | PID+SSR Mode |
Wave drive power | KTU-350:1/2HPX2 3P 220VAC KTU-450:1/2HPX2 3P 220VAC |
Warm-up time | About 90Min(set:250°C) |
PCB size | KTU-350:50-350mm/KTU-450:50-450 |
Height | Top:120mm,Bottom:25±5mm |
Speed | 0-1800mm/min |
Entry height | 750±20mm(Optional:900±20mm) |
Conveyor angle | 3~7 |
Conveyor motor power | 120W 3P 220VAC |
N₂ consumption | 15m³/h<1000PPM |
Source pressure | 0.5~08KPa |
Flux auto feeding | Standard |
Flux flow | 20~100ml/min |
Spray pressure | 0.25~0.4MPa |
Fans | 380VAC 750W |
Air tube diameter | ф200mm |
Cooling(option) | 2HP 2P 220VAC |
Center support | Option |
Successful Experience:
1. We provide the best full-line equipment solutions for customers in different industries.(such as : chip industry, consumer electronics industry, aerospace technology, automated robotics and other industries)
2. We provide machine installation services for oversea customers.
3. We Provide Machines & Clean Room One- Stop Layout and Solution.
4. KINGSUN’s engineering team is proficient in English and Technology, no communication issues.
For SMT Factory Setup, We Can Do for You:
1. We can provide SMT full line solutions and debugging services.
2. We can provide technical personnel training for customers.
3. We can provide daily maintenance & repair service.
