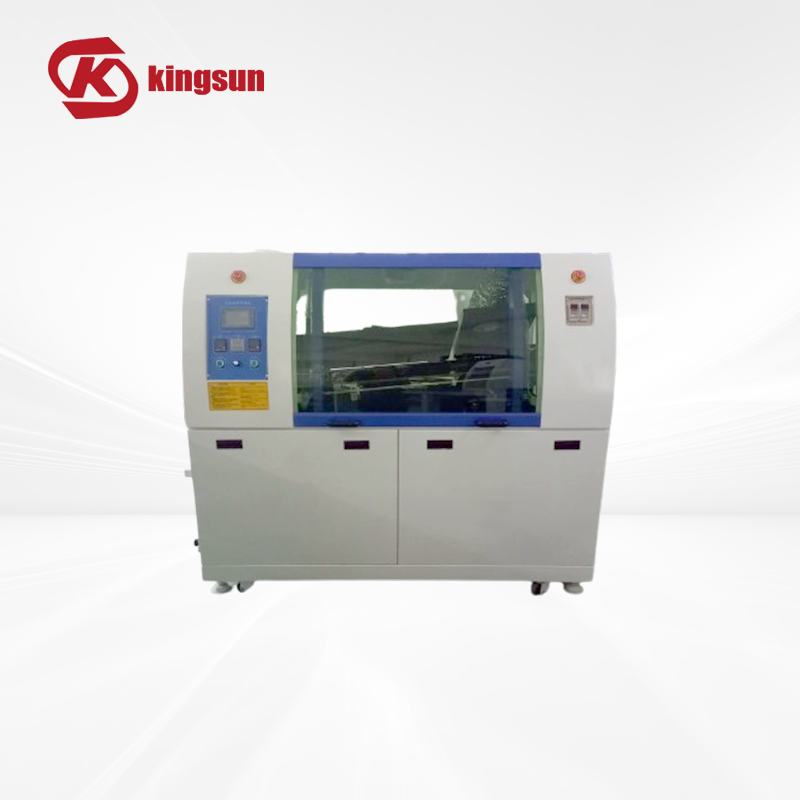

KS-K250
TECHNICAL PARAMETER
KS-K250 | |
PCB board adjustable width | Max.50~260mm |
PCB board transport height | 750±20m |
PCB board transportation speed | 0~1200mm／min |
PCB board transport Angle (welding Angle) | 3 to 7 degrees |
PCB board transportation direction | L→R |
PCB board component height limit | Max.100mm |
Peak height range | 0 -- 15mm adjustable, and maintain peak balance. |
Crest number | 2 |
Length of preheating zone | 800mm |
Number of preheating zones | 1 |
Preheating zone power | 3kw |
Preheating zone temperature | The room temperature ranges from 250 ° C |
Heating mode | Motor hot air |
Number of cooling zones | 1 |
Cooling mode | Axial fan cooling |
Solder type applicable | Lead-free solder/regular solder |
Tin furnace power | 6kw |
Amount of tin dissolved in tin furnace | Approx.180kg |
Tin furnace temperature | Room temperature ~300℃, control accuracy ±1-2℃ |
Temperature control mode | P.I.D+SSR |
Complete machine control mode | Mitsubishi PLC+ touch screen |
Flux capacity | Max5.2 L |
Flux flow rate | 10~100ml/min |
Spray mode | Stepping motor + straddle special small nozzle |
Power supply | Three phase and five wire system 380V |
Starting power (total power) | Max.7kw |
Normal operating power | Approx.2.5kw |
Air source | 4~7kg/CM2 |
Frame size | L1800×W1200×H1500mm |
Profile size | L2600×W1200×H1500mm |
weight | Approx.600kg |
