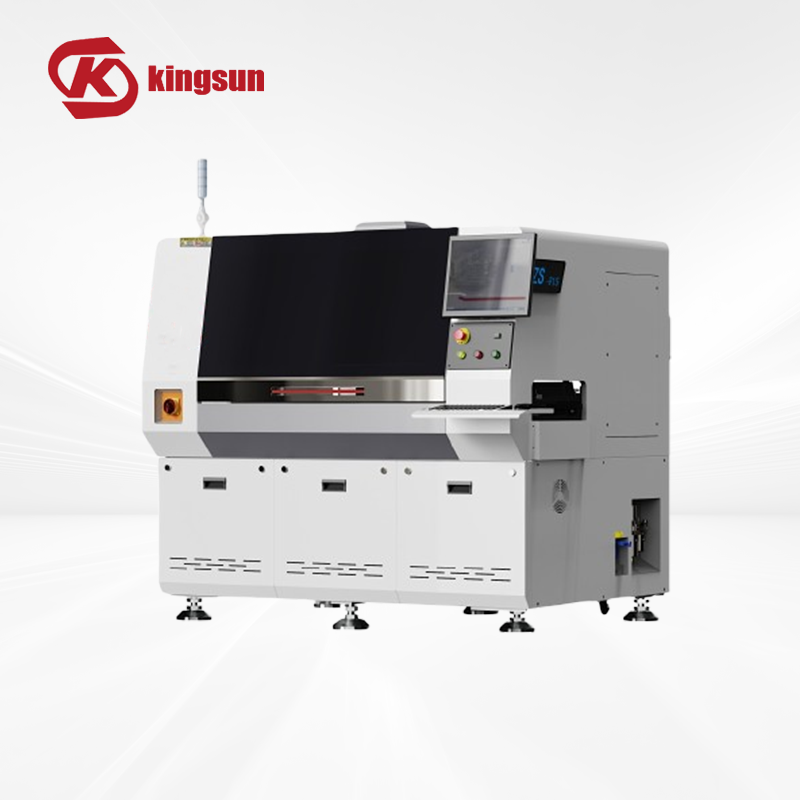

KS-RZS
TECHNICAL PARAMETER
Model no | KS-RZS |
Insertion accuracy | 0.01mm |
Number of feeder | standard 12 set （option：standard 20 set） |
Theoretical speed | Insert 0.19 sec/pcs,transfer 3 sec/pcs |
PCB Size | max pcb pass size L420*W290mm, max insert range L410*W270mm, above left→right |
Insertion angle& lead span | Standard: -90 °~+90 °, 360 ° optional, in increments of 1 °;spacing 2.5/3.5/ 5.0/7.5/10.0mm(optional) |
Component type&size | Suitable for radial tape packaging materials with tape hole spacing of 12.7/15mm;max height 23mm,max diameter 13mm(customizable) |
Component lead trimming &bending | trimming length1.2~2.2mm（adjustable）;bending angel 5~45°(adjustable) |
Power&Air | 220V,AC 50/60HZ ,1.5KW,single-phase；0.6mpa/0.3m³/min |
Size&Weight | overall dimension:L1570*W1485*H1645mm（12 feeder station），approximately weight:1500kg overall dimension:L2518mm×W1782mm×H1785mm（20 feeder station），approximately weight:1500kg |
Control System | Windows operating system, Chinese&English interface, platform, LCD display，USB input (EXCEL document-format) |
Driving System | AC servo, AC motors，base driving mode/CTA driving mode: solenoid valve+precision cylinder |
Successful Experience:
1. We provide the best full-line equipment solutions for customers in different industries.(such as : chip industry, consumer electronics industry, aerospace technology, automated robotics and other industries)
2. We provide machine installation services for oversea customers.
3. We Provide Machines & Clean Room One- Stop Layout and Solution.
4. KINGSUN’s engineering team is proficient in English and Technology, no communication issues.
For SMT Factory Setup, We Can Do for You:
1. We can provide SMT full line solutions and debugging services.
2. We can provide technical personnel training for customers.
3. We can provide daily maintenance & repair service.
