KS-8MF

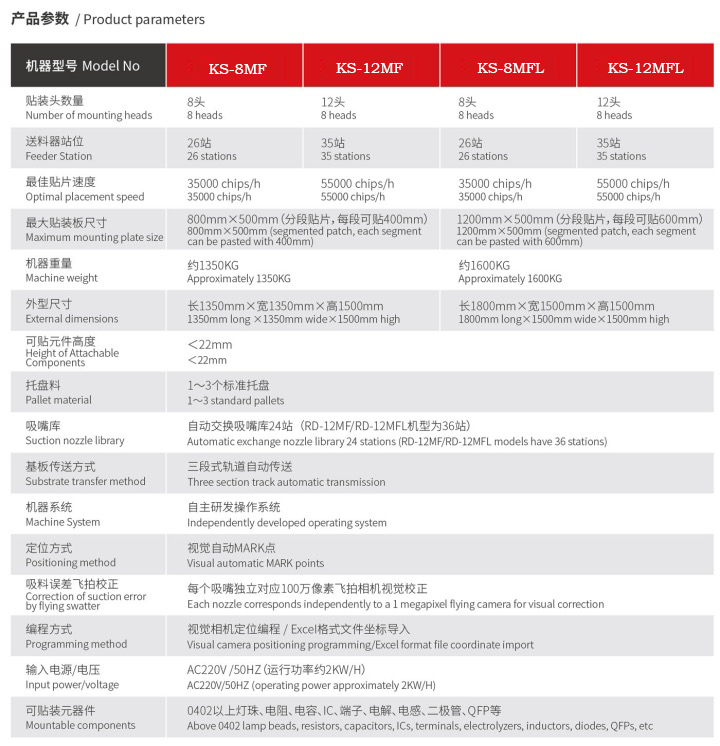

Product parameters
Model No | KS-8MF | KS-12MF | KS-8MFL | KS-12MFL |
Number of mounting heads | 8heads | 12heads | 8heads | 12heads |
Feeder Station | 26 stations | 35 stations | 26 stations | 35 stations |
Optimal placement speed | 35000 chips/h | 55000 chips/h | 35000 chips/h | 55000 chips/h |
Maximum mounting plate size | 800mm×500mm (segmented patch,each segment can be pasted with 400mm) | 1200mm×500mm (segmented patch,each segment can be pasted with 600mm) | ||
Machine weight | Approximately 1350KG | Approximately 1600KG | ||
Extemal dimensions | 1350mm long×1350mm wide×1500mm high | 1800mm long×1500mmwide×1500mm high | ||
Height of Attachable Components | <22mm | <22mm | ||
Pallet material | 1~3 standard pallets | |||
Suction nozzle library | Automatic exchange nozzle library24 stations(RD-12MF/RD-12MFL models have 36 stations) | |||
Substrate transfer method | Three section track automatic transmission | |||
Machine System | Independently developed operatingsystem | |||
Positioning method | Visual automatic MARK points | |||
Correction of suction error by flying swatter | Each nozzle corresponds independently to almegapixel flying camera forvisual corection | |||
Programming method | Visual camera positioning programming/Excel format file coordinate import | |||
Input power/voltage | AC220V/50HZ(operating power approximately 2KW/H) | |||
Mountable components | Above 0402 lamp beads,resistors,capacitors,ICs,terminals,electrolyzers,inductors,diodes,QFPs,ete | |||
