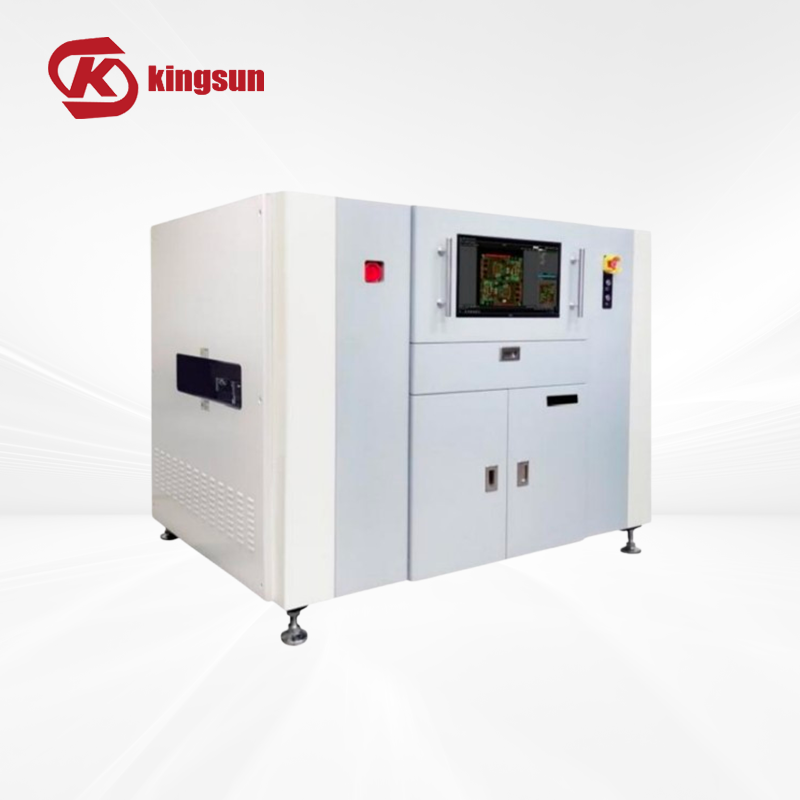

3D AOI KS-AS1200
TECHNICAL PARAMETER
Camera | High-Speed CCD 12MP |
Lens | Telecentric Lens |
Projection system | 3D 4 directional projection gratings |
Light | Ring LED Light |
Resolution | 15μm(12μm for option) |
FOV | 60mmx45mm(15μm) |
Board size range | 50mm×80mm~1200mm×500mm |
Top side/Bot side clearance | 40/40 mm |
Conveyor Height | 900±20mm |
Dimension(W*D*H) | 1953×1490×1606mm |
Weight | ~1000kg |
Power supply | 220V±10%,50/60Hz,1.8KVA |
Operation System | Windows 10×64 |
Display | 24”LED |
Result | 2D/3D true color |
Successful Experience:
1. We provide the best full-line equipment solutions for customers in different industries.(such as : chip industry, consumer electronics industry, aerospace technology, automated robotics and other industries)
2. We provide machine installation services for oversea customers.
3. We Provide Machines & Clean Room One- Stop Layout and Solution.
4. KINGSUN’s engineering team is proficient in English and Technology, no communication issues.
For SMT Factory Setup, We Can Do for You:
1. We can provide SMT full line solutions and debugging services.
2. We can provide technical personnel training for customers.
3. We can provide daily maintenance & repair service.
