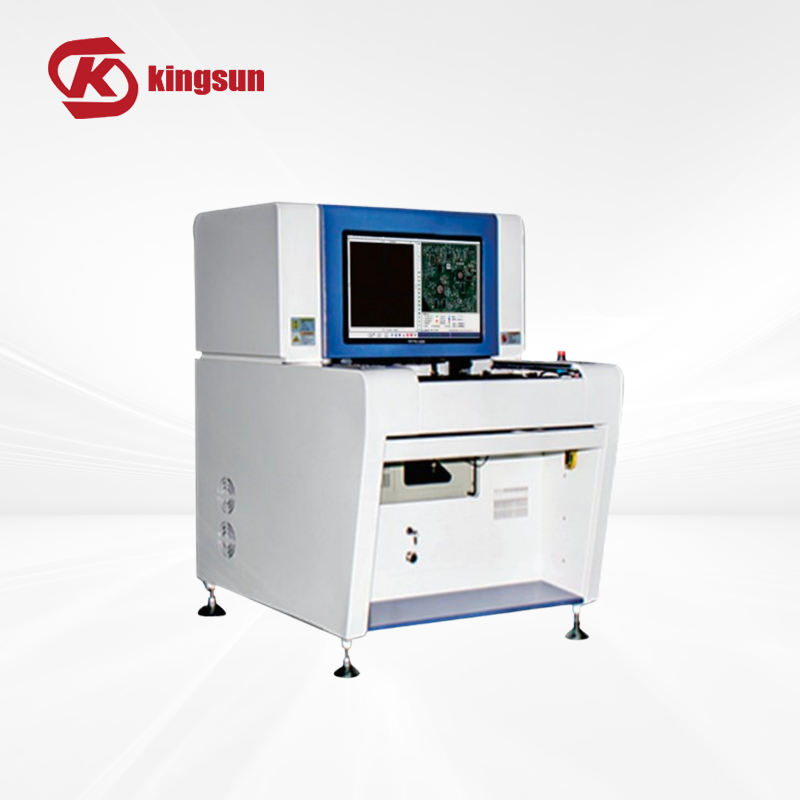

2D AOI Offline KS-A410
TECHNICAL PARAMETER
Inspection | Using multiple algorithms syntheticaly such as WDM,Color Image contrast technology,Color extracting technology, similarty,two-value handling technology,OCR/OCVand so on. |
Camera | Color camea:20um(15um for optical) |
Lamp-house | Ring RGB LED flash lamp-house |
0201Chip | <10ms |
Perimage Time | <170ms |
Paste Printig Defects | Misaligned,overflow,insuficient,pasting open,stain |
Component Defects | Missing,misaligned,skewed,tombstone,billboard,overturned,reversed polarity,wrong,damaged |
Solder Defects | Overflow,insufficient,short solder,stain |
Anti Static Measures | Anti static electric outlet,anti static wreath |
PCB Size | 25×25mm-480*330 Can Customerized Size |
PCB Thickness | 0.5-2.5mm |
PCB Warp Tolerance | ±2mm |
Component Clearance | TOP≤28mm,BOT≤75mm |
Minimum Space Parts | 0201 chip(15um) |
Orientation | <10um |
Moving Speed | 700mm/s |
Operation System | Microsoft Windows 7 |
Characteristics | WIDM,study OK template,automatically set template imaging,identify data and error numerical value |
Operation | Graphic programming,take along with chip library and get a inspection frame according with chip shape, aureate position,micron adjust,and easy programming |
Mark Numbers | 0~2marks can be chosen |
Recognising Speed | 0.5s/pcs |
Computer | CPU:Intel dual-core,Memory:4G,Harddisk:1T |
Machine Dimensions | 87(L)*104(W)*130(H)CM |
Weight | ~310kg |
Power Supply | AC220V,10%,single phase 50/60HZ,power consumption 600W |
Successful Experience:
1. We provide the best full-line equipment solutions for customers in different industries.(such as : chip industry, consumer electronics industry, aerospace technology, automated robotics and other industries)
2. We provide machine installation services for oversea customers.
3. We Provide Machines & Clean Room One- Stop Layout and Solution.
4. KINGSUN’s engineering team is proficient in English and Technology, no communication issues.
For SMT Factory Setup, We Can Do for You:
1. We can provide SMT full line solutions and debugging services.
2. We can provide technical personnel training for customers.
3. We can provide daily maintenance & repair service.
